型號：EM ,EI ,ES, EJ-Series
EM ,EI ,ES, EJ-Series
SMT or Through-hole Slide Dip Switches, 2.54mm Pitch, 1~10, 12 Poles, Raised or Recessed Actuator

2.54mm pitch slide dip switches
Outward or inward SMT terminals
Right-angled or splayed through-hole Terminals
1~10, 12 Poles
加入詢問
Feature
  • Switching rating : 25mA, 24VDC
  • Contact resistance: 100mΩ max. at initial.
  • Dielectric strength : 500VAC/1minute.
  • Insulation resistance: 100MΩ min, at 500VDC
  • Electrical life : 2000 operation cycles
  • Operation Temp.:  -20 to + 85 ℃
  • Storage Temp.:  -40 to + 85 ℃
  • Base & Cover: UL94V-0 Nylon High-Temp Thermoplastic, color black.
  • Actuator: UL94V-0 LCP High-temp Thermoplastic. color white
  • Contact: Alloy Cooper with gold plated
  • Terminal: Brass with gold plated
  • Right-angled or splayed through-hole Terminals
  • Raised or Recessed Actuator
  • Top tape sealing available



Specification

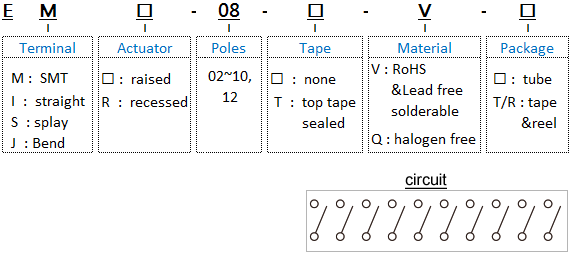

How to order

Item

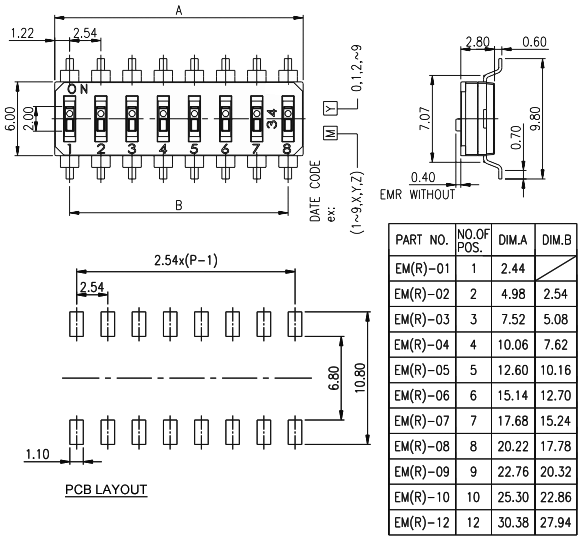

EM, EMR-spec

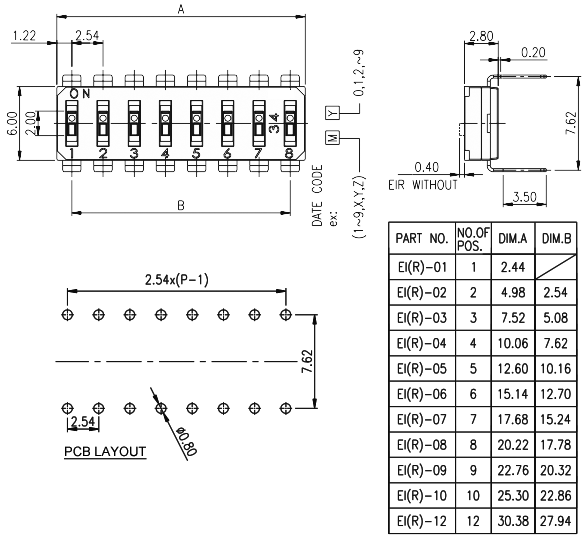

EI, EIR-spec

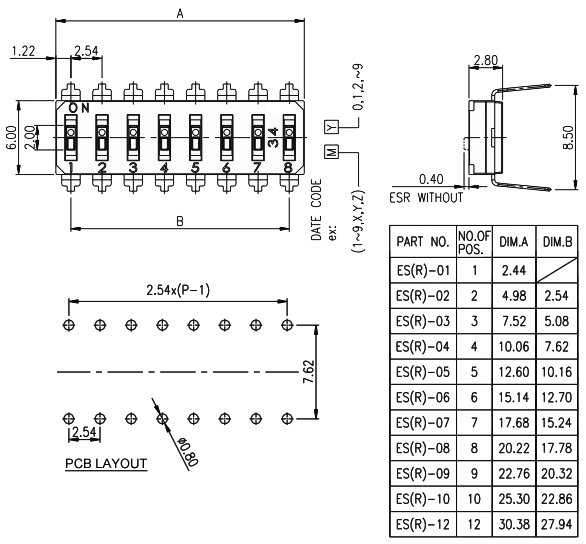

ES, ESR-sepc

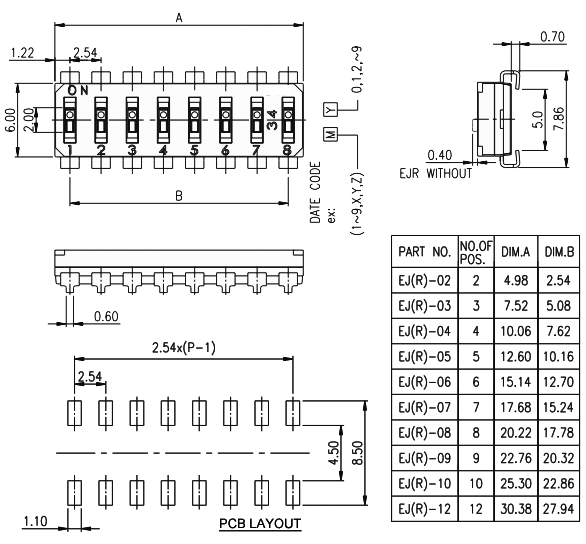

EJ, EJR-spec
