型號:DHN-Series
DHN-Series
SMT Dip Switches, Low-profile 1.6mm height, Half-pittch, 2, 4~10 Poles, Tape-sealed over the Surface
Low profile 1.6mm in height mini-slim SMT dip switches
2, 4, 6, 8, 10 poles
Half pitch 1.27mm
Width of the pole sitting, 6.7 or 8.1mm
Tube or reel packaging
加入詢問
SMT Dip Switches, Low-profile 1.6mm height, Half-pittch, 2, 4~10 Poles, Tape-sealed over the Surface
Low profile 1.6mm in height mini-slim SMT dip switches
2, 4, 6, 8, 10 poles
Half pitch 1.27mm
Width of the pole sitting, 6.7 or 8.1mm
Tube or reel packaging
Feature
- Switching rating : 25mA, 24VDC.
- Electrical life : 1,000 cycles
- Contact resistance : 100m ohm max. initial.
- Insulation resistance : 100M ohm min (at 500VDC)
- Dielectric strength : 300VAC/1minute.
- Circuit : single throw, with 2, 4, 6, 8 & 10 poles
- Temperature range : -40 to + 85 degrees in Celsius
- Base&Cover : High-Temp. Thermoplastic, black color
- Actuators : Thermoplastic LCP, white color
- Contact : Phosphor Bronze, gold plated.
- Terminals : Brass, gold plated
- Top Sealed tape available
Specification

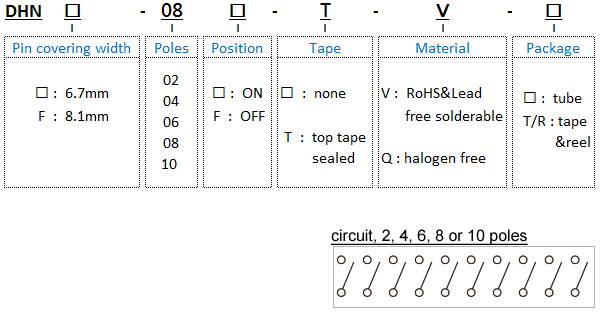

How to order
Item

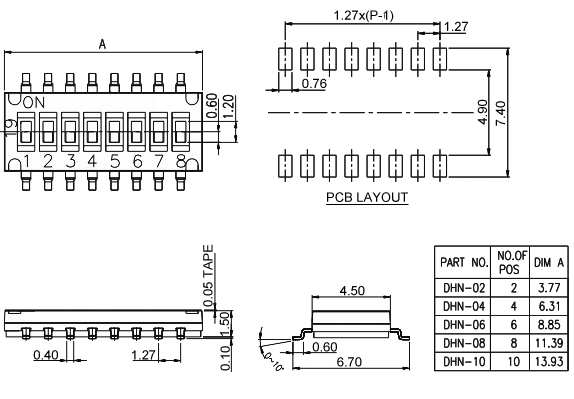

DHN spec

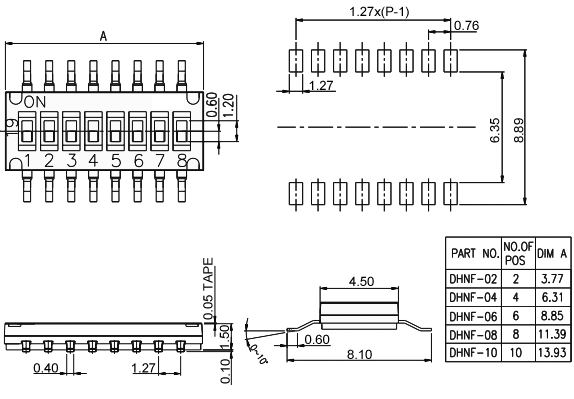

DHNF spec
