SL19, Pitch 4.7
SL19, Pitch 4.7
型號：SL19 Series
SL19
Pitch 4.7
MINI SLIDE SWITCHES UP TO 6A 120VAC
instrumental usages, panel mounting, PCB, solder lug
加入詢問
Pitch 4.7
MINI SLIDE SWITCHES UP TO 6A 120VAC
instrumental usages, panel mounting, PCB, solder lug
Feature
- 6A 120VAC, 3A 250VAC (UL)
- 6A 28VDC (UL)
- Initial contact resistance : 10m ohm (max.)
- Insulation resistance : 500VDC 100M ohm (min)
- Dielectric strength : 1,000VAC for 1 minute
- Life cycle : 30,000 cycles
- Temperature range : -20 to + 85 degrees in Celsius
- Case : Diallyl phthalate (DAP)
- Housing : Stainless steel.
- Slide handle : Nylon66
- Contact : Silver plated copper
- gold plated optional
- Terminals : Silver plated copper or brass
gold plated optional
Specification

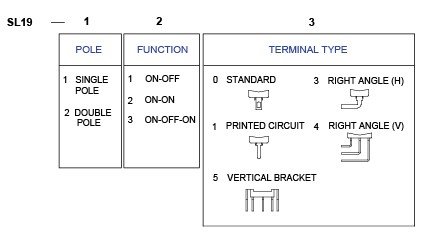

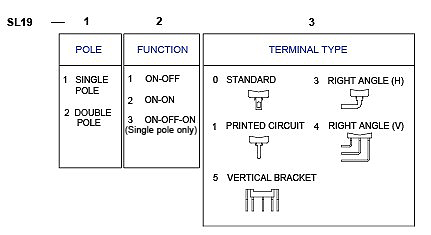

How to order
Item
|

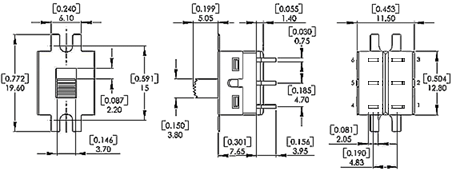

SL19-220 |
 |
|

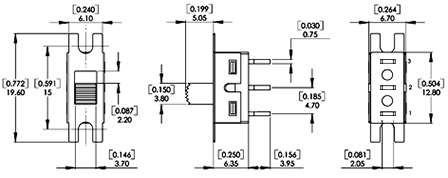

SL19-120 |
 |
|

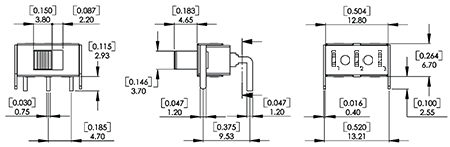

SL19-123 |
 |
|

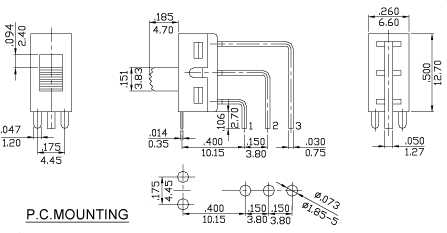

SL19-124 |
 |
|

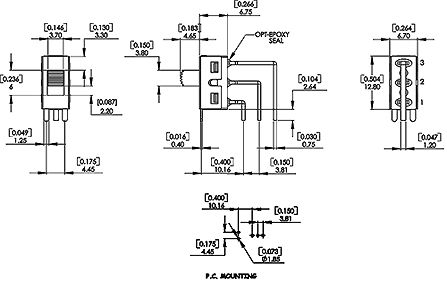

SL19-134 |
 |
