SL16, slim slide switches
SL16, slim slide switches
型號：SL16 Series
SL16 SERIES
SLIDE SWITCHES UP TO 4A 125VAC
Slim slide switch for instrumental usage, all plastic housing
加入詢問
SLIDE SWITCHES UP TO 4A 125VAC
Slim slide switch for instrumental usage, all plastic housing
Feature
- 4A 125VAC, 2A 250VAC (UL )
- Contact resistance : 50m ohm (MAX.)
- Insulation resistance : 100M ohm (MIN), DC 500V
- Dielectric strength : 1000VAC for 1 minute
- SP3T,DP3T, PCB mounting
- Enclosure : PBT / Nylon, UL rated 94V-2 min.
- Base : PBT / Nylon, UL rated 94V-2 min.
- Actuator : PBT/Nylon, UL rated 94V-2 min.
- Contact arm : Copper
- String: Steel wire
- Terminals : Copper alloy

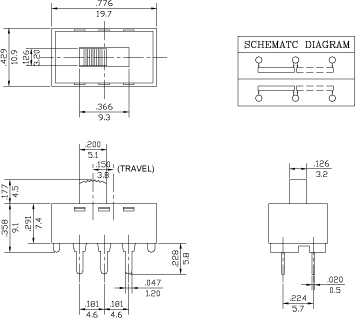

Specification

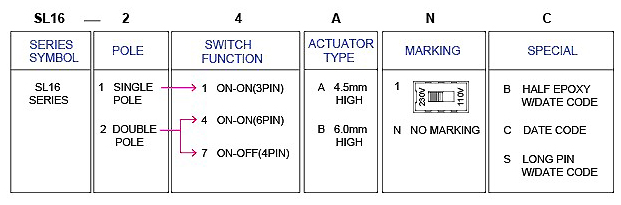

How to order
Item
|
|
 |
