SL15, Slim voltage selector

SL15, Slim voltage selector

型號：SL15 Series
SL15
Pitch 6.8

Slim voltage selector up to 12A 250VAC
single pole, snap-in or panel mounting, solder lug terminals
加入詢問
Feature



  • 12(4)A 125/250V~ T55, T85, 6E3, 1E4(cURus UL61058-1, ENEC15)
  • 12A 24VDC T55, T85,6E3, 1E4(cURus UL61058-1, ENEC15)
  • 10(1)A 250V~μT85/55 1E3 ( CQC)
  • Contact resistance : 20m ohm  (MAX).
  • Insulation resistance : 100M ohm  (MIN), DC 500V
  • Dielectric strength : 1000VAC for 1 minute
  • Standard power switch for PC
  • Safety approved internationally by cURus in North America, ENEC15 in Europe, CQC in Asia.
  • SPST, SPDT
  • Screw and Snap in mounting bype
  • Standard solder or bending terminal



Specification

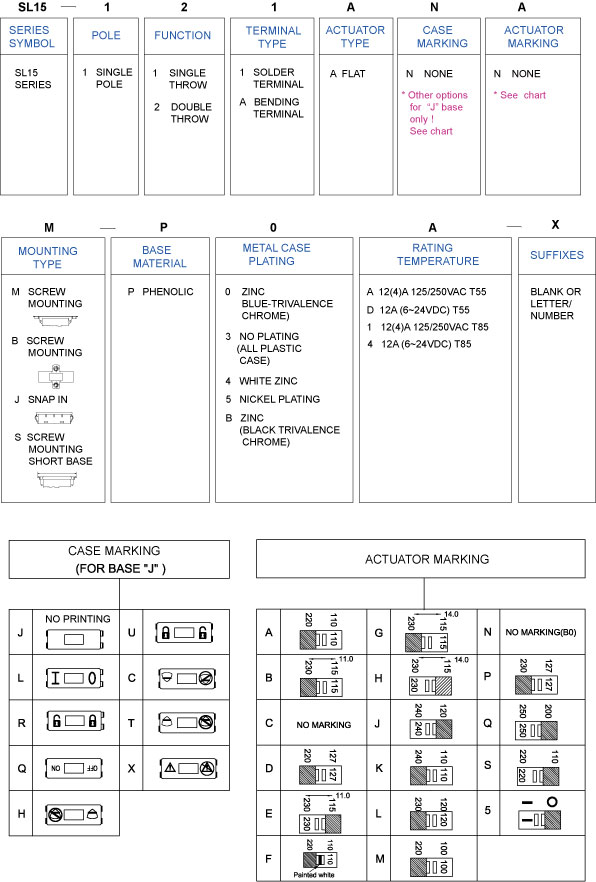

How to order

Item


SL15-111AJBJ-P3A-1JNN

SL15-111ANBM-P5A-1MNN

SL15-111 ANBE-P0A-1BNN

SL15-111ANBS-P0A-1SNN
