型號：SL14 Series
SL14
Slide Switches and Voltage Slector, DPDT, DP3T, Pitch 7.0, 12A 250VAC

SLIDE SWITCHES AND VOLTAGE SELECTOR UP TO 12A 250VAC
Double poles, panel or PCB mounting, solder lug, right angle terminals
加入詢問
Feature



  • 12A 125/250VAC , 4A 300VAC(UL, CUL)
  • 10(1)A 250VAC (CQC)
  • 10(1)A 250V~μT85/55 (VDE,ENEC)
  • 4(2)A 250V~μT85/55 (VDE,ENEC)
  • 8(2)A  125/250V ~μT85/55 (ENEC 15)
  • Contact resistance : 20m ohm  (MAX).
  • Insulation resistance : 100M ohm  (MIN), DC 500V
  • Dielectric strength : 1000VAC FOR 1 MINUTE
  • Enclosure : PBT / Nylon, UL rated 94V-0 min
  • Actuator : PBT, UL rated 94V-2 min
  • Base : PBT / Phenollic, UL rated 94V-0 min
  • Terminals : Silver plated Copper
  • Contact : Silver plated copper
  • Spring : Stainless wire
  • Safety approved international by UL, CUL in North America, VDE, ENEC in Europe, CQC in Asia
  • SPST, SPDT, SP3T, DPST, DPDT, DP3T
  • Screw and PCB mounting type; Solder and PC terminals
  • Base material: PBT, Nylon

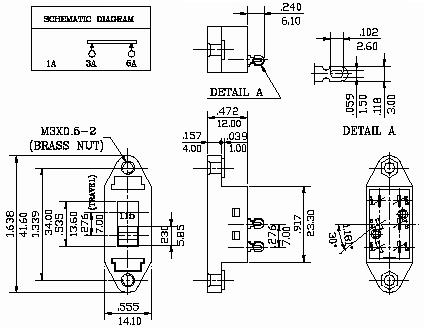

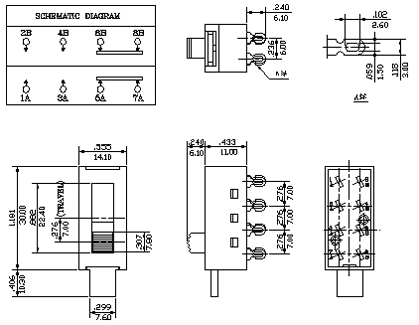

Specification

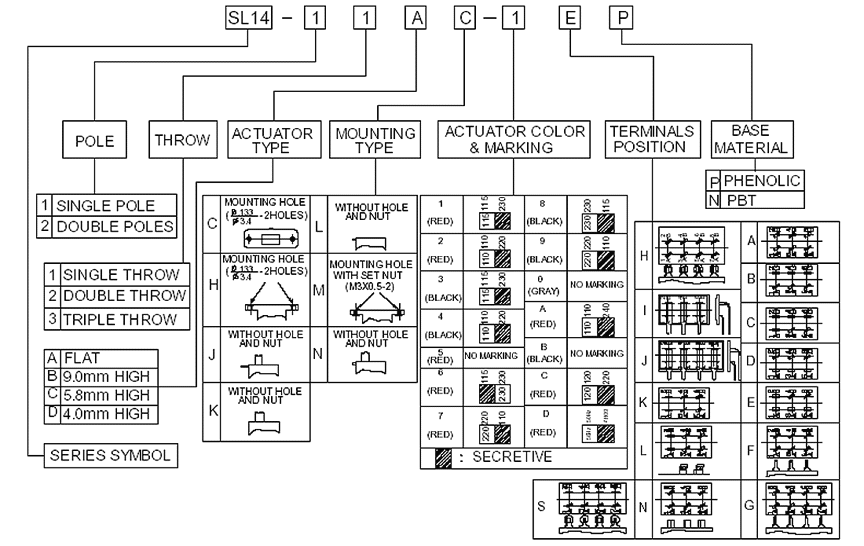

How to order

Item


SL14-11AM1CN

SL14-23CJ0H
