SL13, Pitch 5.0

SL13, Pitch 5.0

型號：SL13 Series
SL13 SERIES
SLIDE SWITCHES UP TO 1A 125VDC

2P2T, 2P35, Right Angled Mounting, PCB terminals
加入詢問
Feature

  • 1A 125VDC (UL)
  • Contact resistance : 50m ohm max
  • Dielectric strength : 1,000 VAC for 1 minute.
  • Life cycle : 10,000 cycles
  • Operation force : 300±200g
  • Frame : Nickel plated steel
  • Actuator : PBT+15% G.F, UL rated 94V-2 min
  • Base : Phenolic
  • Movable contact: Silver plated copper
  • Contact spring : Spring steel
  • Terminals : Silver plated copper
  • Spring : Piano wire
  • Steel ball: Steel
  • Frame : Nickel plated steel

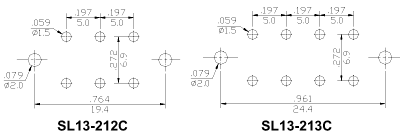

P.C. BOARO HOLE

Item

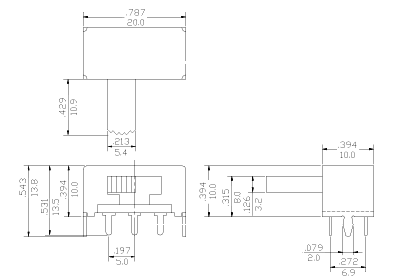

SL13-212C

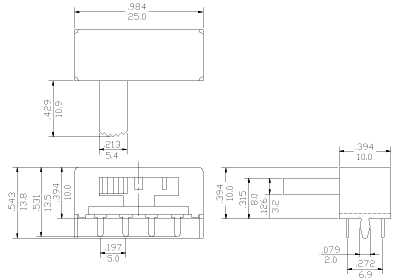

SL13-213C
