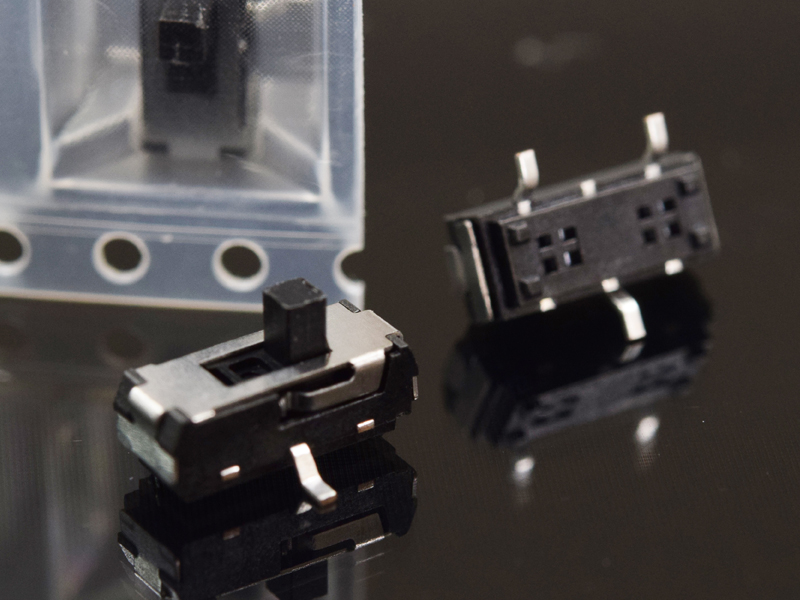

MS-12D16, MS-12D17, Mini DC Slide Switch
MS-12D16, MS-12D17, Mini DC Slide Switch
型號：MS-12D16, MS-12D17
MS-12D16, MS-12D17
Mini DC Slide Switch, SMD or Through-hole Mounting, 0.3A DC6V, 1P2T
Small slide switch for DC application
SMD or through hole terminals
Single Pole Double Throw
On-On, non-shorting
加入詢問
Mini DC Slide Switch, SMD or Through-hole Mounting, 0.3A DC6V, 1P2T
Small slide switch for DC application
SMD or through hole terminals
Single Pole Double Throw
On-On, non-shorting
Feature
- Rating: 0.3A DC 6V
- Contact Resistance: 70mΩ Max.
- Non shorting
- Travel: 2mm
- Operating Force: 250gf ± 150gf
- Life: 10K cycles
Item

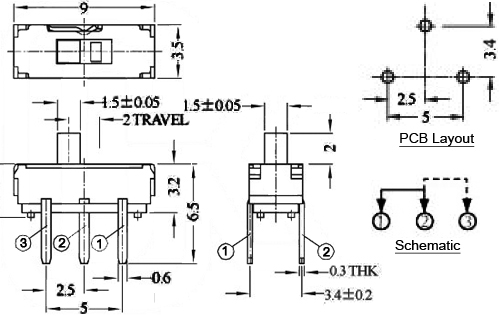

| MS-12D16 |  |

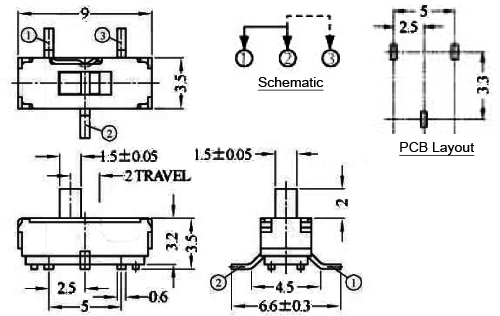

| MS-12D17 |  |
