型號：CR30 SERIES
CR30 SERIES
Rotary Switches Up To 20A, Various Rotation Angles, D-shape Actuator Available

Rotary Switches Up To 20A, 125/250VAC
Rotation angle: 18º, 22.5°, 30°, 45°, 60° & 90° available
Knobs available fitting D-shape flat actuator, consult us for knob options
加入詢問
Feature

  • 20A 125/250VAC (UL, CUL)
  • 16(4)A 250V~ T125/55 (UL, CUL)
  • Contact Resistance: 50mΩ Max
  • Insulation Resistance: DC 500V 100MΩ Min.
  • Dielectric Strength: AC 1500V for 1 minute
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 30,000 cycles
  • Actuator: PBT+30% GF / UL  94V-0
  • Base: PA66+30% GF / UL  94V-0
  • Rotation angle: 18º, 22.5°, 30°, 45°, 60° & 90° available
  • Sutible for large, medium and small oven, electric oven, home appliance heater, electric heater, hanging ironing machine, etc.​
  • Operation Force: 1000±300gf



Item

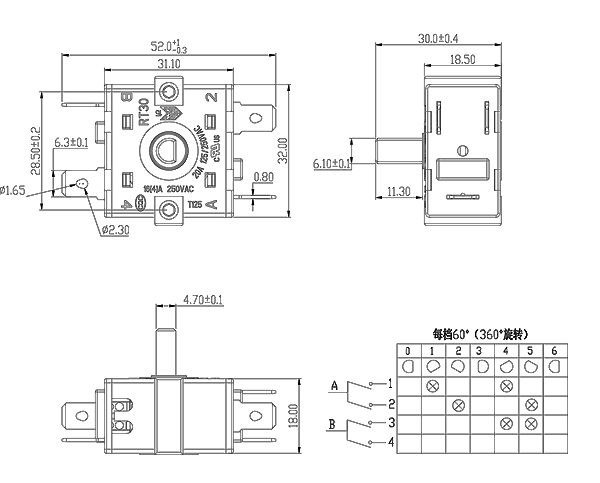

CR30-A601L1S-R
