型號：CR01 Series
CR01 Series
Rotary Switches up to 10 positions, 36º & 45º of rotation angle, D-shape Actuator, Knobs Available

Rotary Switches Up To 12A, 250VAC
Optional rotation angle at 36º & 45º , 01~10 positions
Knobs available fitting D-shape flat actuator, consult us for knob options
加入詢問
Feature

  • 12(3)A 250V~T125 (UL, CUL)
  • Contact Resistance: 30mΩ Max.
  • Insulation Resistance: DC 500V 100MΩ Min.
  • Dielectric strength : 1000VAC for 1 minute
  • Electrical life: 10,000 cycles
  • Operation Force: 500±200gf
  • Actuator: PBT+30% GF / UL  94V-0
  • Base: PA66+30% GF / UL  94V-0
  • Rotation angle:
  1. 36º, 10 positions without momentary function
  2. 36º, 7 positions with momentary function
  3. 45º, 8 positions without momentary function
  4. 45º, 5 positions with mometary function
  • Sutible for a small household appliances of fruit juice machine, mixer, air purifier, etc.

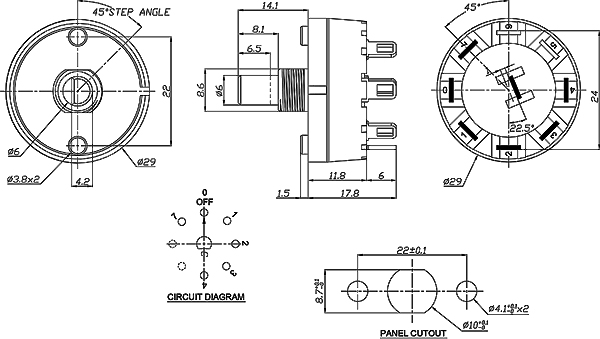

Specification

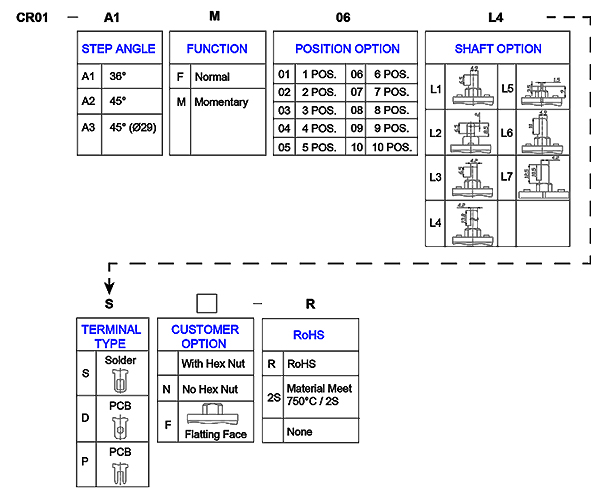

How to order

Item

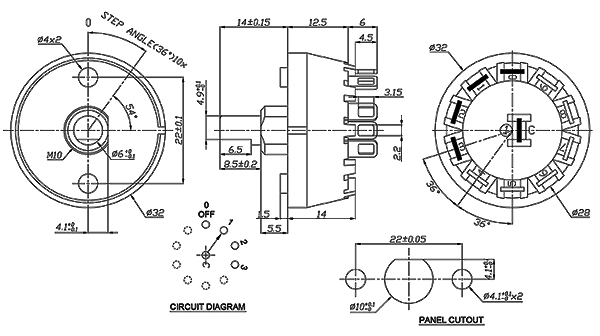

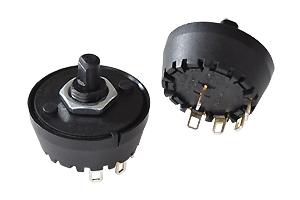

CR01-A1F03L1S-R

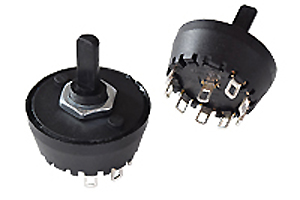

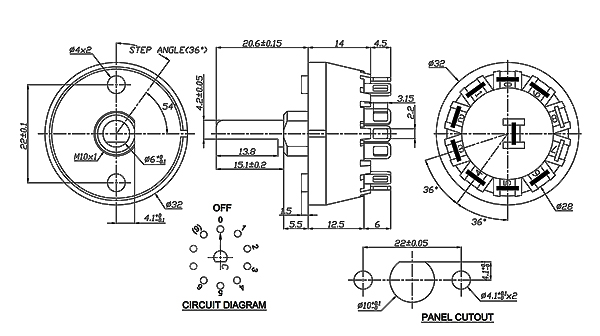

CR01-A1M06L4S-R-1

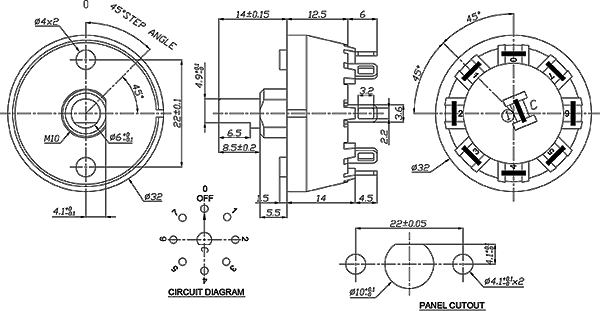

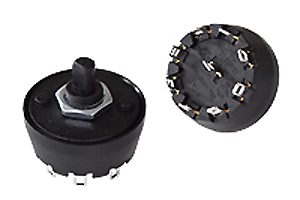

CR01-A2F08L1S-R

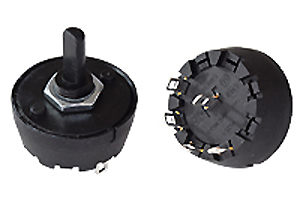

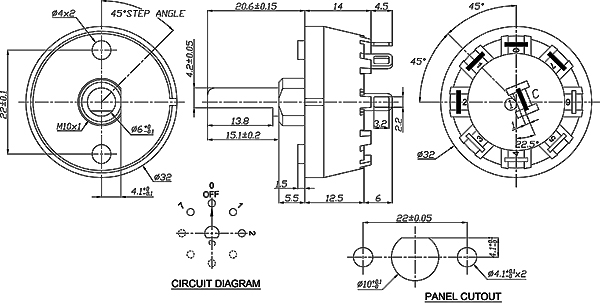

CR01-A2M02L4S-R

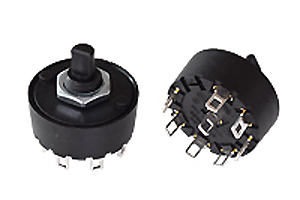

CR01-A3M05L3S-R
