ML9, 8x8.4mm Illuminated Tact Switches
ML9, 8x8.4mm Illuminated Tact Switches
/Prod2019061400001.jpg)
型號：ML9
ML9
8x8.4mm Illuminated Tact Switches, SMT mounting, Various Options of LED color
Tact switches with high bright LED
SMT mounting, with optional posts for firm installment
Solid building with metal frame holding the housing
加入詢問
8x8.4mm Illuminated Tact Switches, SMT mounting, Various Options of LED color
Tact switches with high bright LED
SMT mounting, with optional posts for firm installment
Solid building with metal frame holding the housing
Feature
- 50mA, 24VDC
- Contact resistance: 100mΩ max. at initial.
- Dielectric strength : 250VAC/1minute.
- Insulation resistance: 100MΩ min., at 100VDC
- Operation force: 400+/-100g
- Terminals for SMT mounting
- Travel: 0.45mm
- Electrical life : 300,000 cycles
- Operation Temp.: -40 to 85 ℃
- Storage Temp.: -55 to 85 ℃

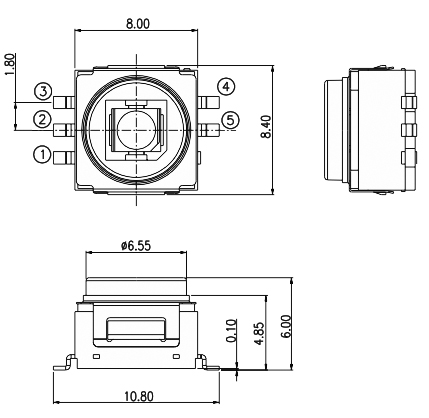

Specification

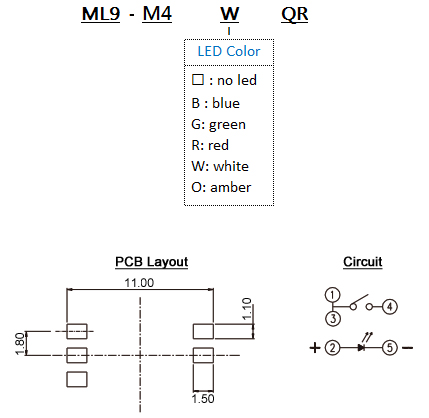

How to order
/ML9-tree.jpg)
Item
/ML9-spec.jpg)
