型號：SS-005 Series
SS-005 Series

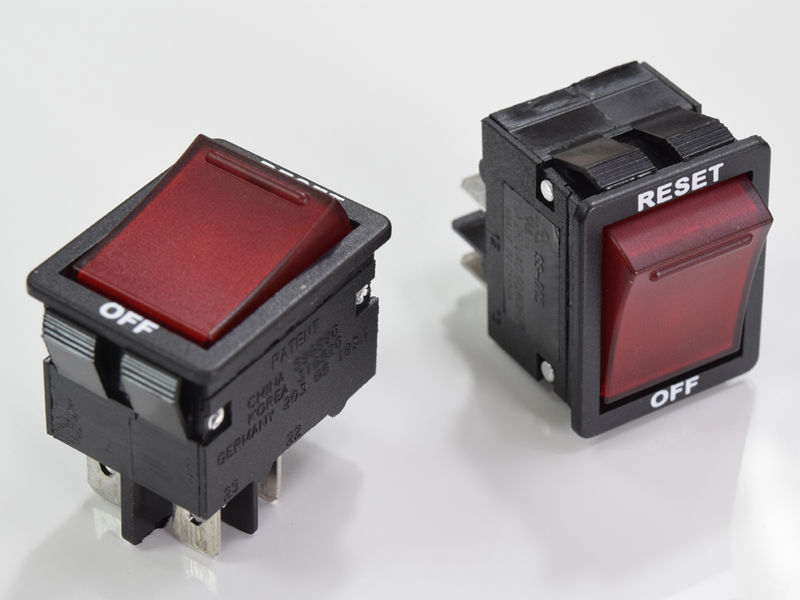

31x22.5mm Double Pole Rocker Switches with Circuit Breakers Built inside, 4-20A 125/250VAC, UL/CUL
31x22.5mm rocker switches built within one or two circuit breakers, trip-free, cycling
Unique sliding switch design
Provides circuit protection and power switching in a single unit
Applications: Motor, transformer, household and office machine, instrumentation, surge protector, power center, etc.
加入詢問
31x22.5mm Double Pole Rocker Switches with Circuit Breakers Built inside, 4-20A 125/250VAC, UL/CUL
31x22.5mm rocker switches built within one or two circuit breakers, trip-free, cycling
Unique sliding switch design
Provides circuit protection and power switching in a single unit
Applications: Motor, transformer, household and office machine, instrumentation, surge protector, power center, etc.
Feature
- 4-20A 125/250VAC, 50VDC (UL. CUL)
- Insulation resistance: 100M Ohms min. (at 500 VDC)
- Dielectric strength: 1,500VAC for 1 minute.
Endurance: 6,000 operations - Ambient operation: Operating normally between 0°C to 65°C
- Calibration: Will continuously carry 100% of rating.

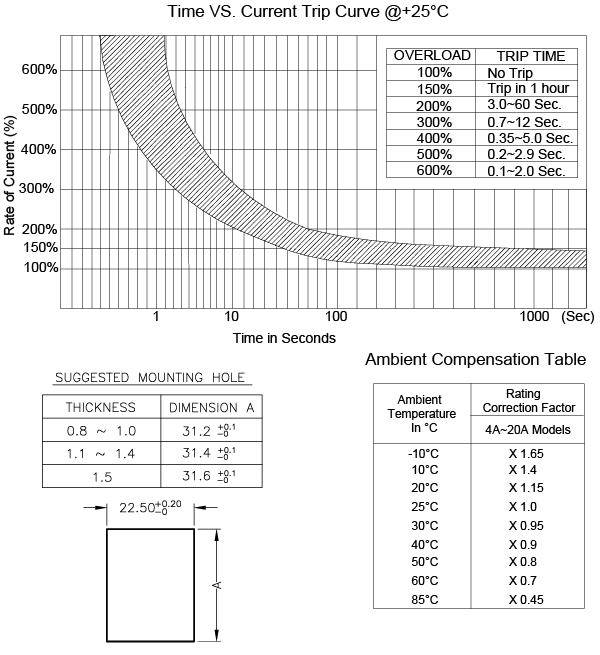

- May trip between 101% and 149%, but must trip at 150% of rating within one hour at +25°C

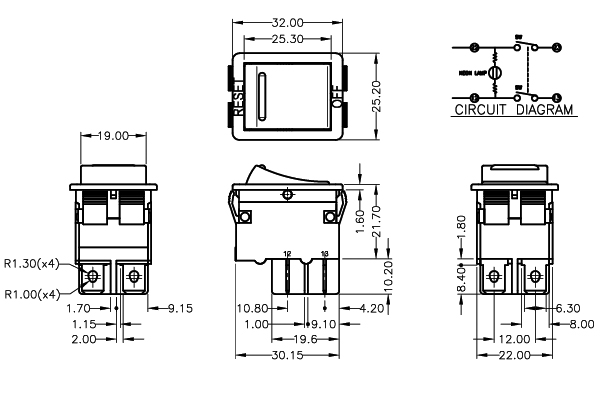

Specification
How to order
Item
CDKL11C*B1R11
