型號：SS-003 Series
SS-003 Series
Mini Slide Switch with Circuit Breaker inside for Circuit Protection, 3-15A 125/250VAC
SS-003 series is a trip-free, cycling with sliding switch design
Provides power switching with circuit protection inside
Various color, termination and marking for available
Applications: Motor, transformer, household and office machine, instrumentation, surge protector, power center, etc.
加入詢問
Mini Slide Switch with Circuit Breaker inside for Circuit Protection, 3-15A 125/250VAC
SS-003 series is a trip-free, cycling with sliding switch design
Provides power switching with circuit protection inside
Various color, termination and marking for available
Applications: Motor, transformer, household and office machine, instrumentation, surge protector, power center, etc.
Feature
- 3-15A 125/250VAC, 32VDC (UL. CUL)
- Insulation resistance: 100M Ohms min. (at 500 VDC)
- Dielectric strength: 1,500VAC for 1 minute.
- Endurance: 6,000 operations
- Ambient operation: Operating normally between 0°C to 65°C
- Calibration: Will continuously carry 100% of rating. must trip at 150% of rating within one hour at +25°C
Specification

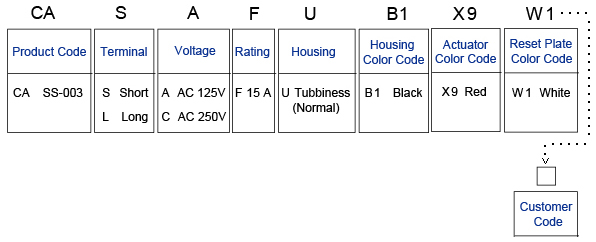

How to order
Item
|

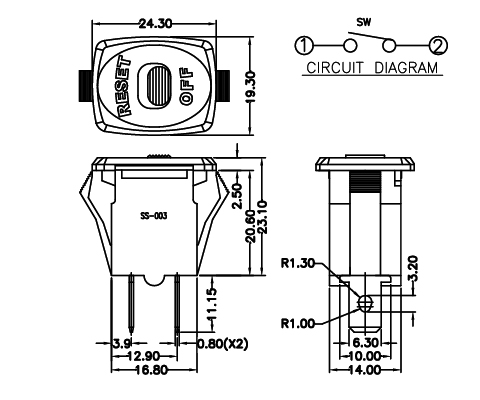

CALCFUB1X9W1 |
 |
|

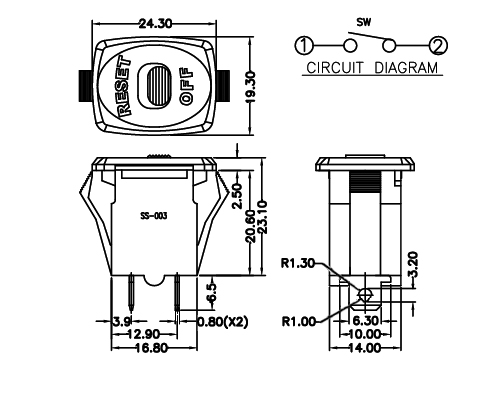

CASCFUB1X9W1 |
 |
