型號：98AR Series
98AR Series
3A-60A

THERMAL CIRCUIT BREAKER, 3A TO 60AMP 24Vdc
Wide selections of rating and terminals, Auto Reset
加入詢問
Feature

  • Rating: 3Amp - 60Amp
  • Input power: 24Vdc (UL/CUL); 125/250Vac
  • Interrupt capacity: 1000Amp 125Vac, 200Amp 24Vdc
  • Voltage Drop: Less than 0.25V
  • Dielectric strength: 1500Vac, 1 minute
  • Resettable overload capacity: 10 times rated current
  • Insulation resistance: >100 M. ohms (50Vdc)
  • Reset time: within 60 seconds
  • Safety Approved internationally by UL & CUL in North America
  • Auto-reset with no button
  • Straight or right angle QC terminal

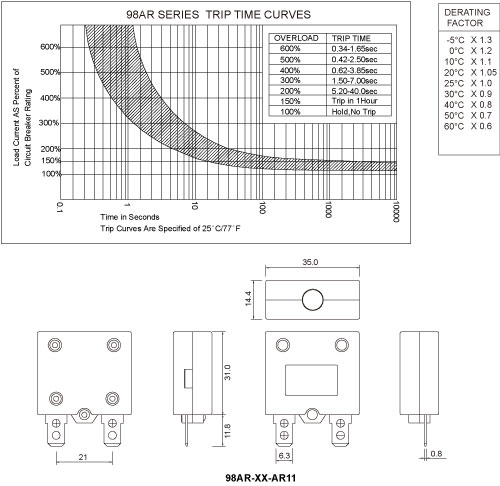

Specification

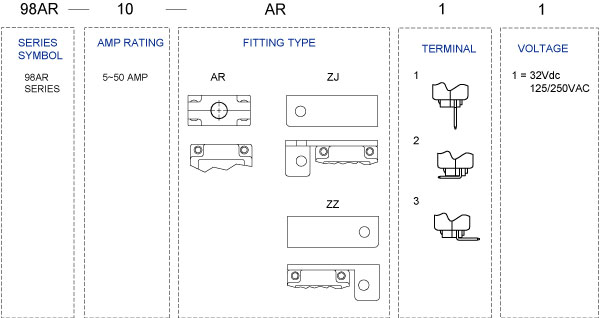

How to order

Item
