型號：95 series
95 series motor protector
Thermal Motor Protector, UL approved
1/2HP-2HP rated
Manuel or Auto reset
Quick connect, PCB or Soldering Terminals
加入詢問
Thermal Motor Protector, UL approved
1/2HP-2HP rated
Manuel or Auto reset
Quick connect, PCB or Soldering Terminals
Feature
- Rating:1/2-2HP, 125/250V AC, 105 to 120°C (UL)
- Dielectric strength: 1000V AC/1 minute
- Insulation resistance: >100 Megaohms
- Endurance cycles: lock rotor motor current
- 500 cycles (95Q)
- 2000 cycles (95L)

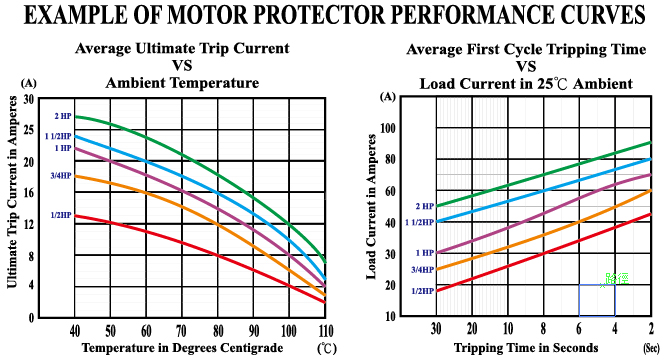

Calibration:
- 40°C-100% of single phase full load current-continuous carried
- 40°C-156% of single phase full load current-trip within 30 minutes (compare winding temperature)
- 40°C-maximum current of locked motor rotor-trip within 10 +/- 5 sec (option)

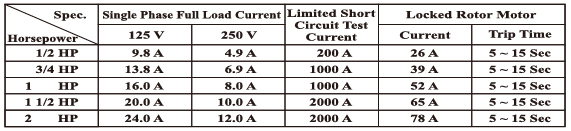

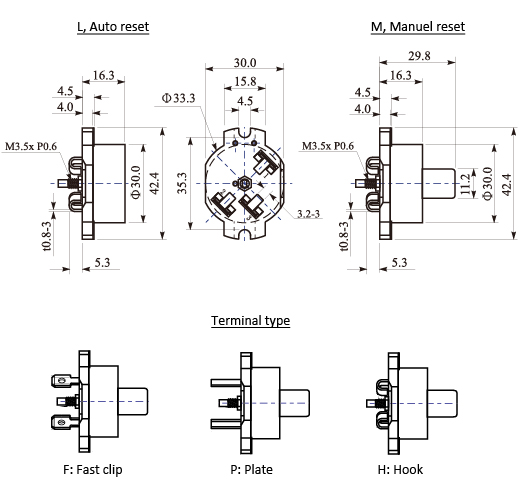

Specification

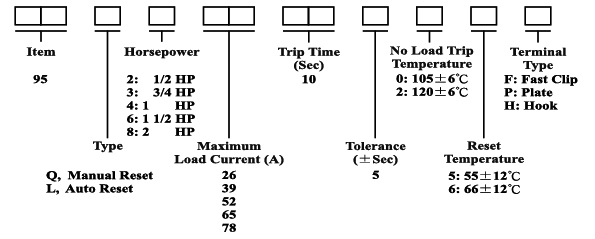

How to order
Item
