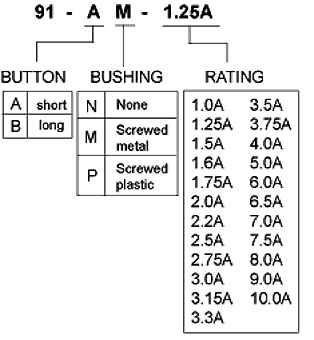

- Rating: 1.0Amp - 10.0Amp
- Input power: 125/250Vac, 50Vdc, 50/60Hz
- Interrupt capacity: 1000Amp, 125Vac; 200Amp, 250Vac
- Dielectric strength: 1500Vac, 1 minute
- Resettable overload capacity: 6 times rated current
- Voltage drop: less than 0.25V
- Insulation resistance: 500 M. ohms min.
- Push to reset ( within 20 seconds)
|
- Temperature rise: less than 65 degrees in Celsius, at 100% of rated current applied continuously at 25 degree in Celsius
- Endurance: 500 cycles min. at 150% rated current, 125Vac

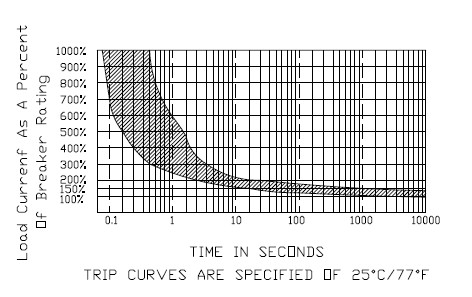

- Calibration (at 25 degree)
100% of rated current: hold, no-trip
135% of rated current: trip in 1 hour
200% of rated current: 3-30 seconds trip
300% od rated current: 0.5-4.0 seconds trip
|
