88AR Series 3A-20A

88AR Series 3A-20A

型號：88AR Series
88AR Series
3A-20A

THERMAL CIRCUIT BREAKER, 3A TO 20AMP
Wide selections of rating and terminals, Auto Reset
加入詢問
Feature

  • Rating: 3.0Amp - 20.0Amp (UL,CUL)
  • Input power: 32Vdc
  • Dielectric strength: 1500Vac, 1 minute
  • Resettable overload capacity: 6 times rated current
  • Voltage Drop: Less than 0.25V
  • Insulation resistance: >500 M. ohms
  • Reset Time: 3-60 sec. at 25 degree C
  • Temperature rise at terminal block: less than 65 degree C
  • Safety Approved internationally by UL & CUL in North America
  • Auto-Reset with no button, no accessory
  • Straight or right angle QC terminals

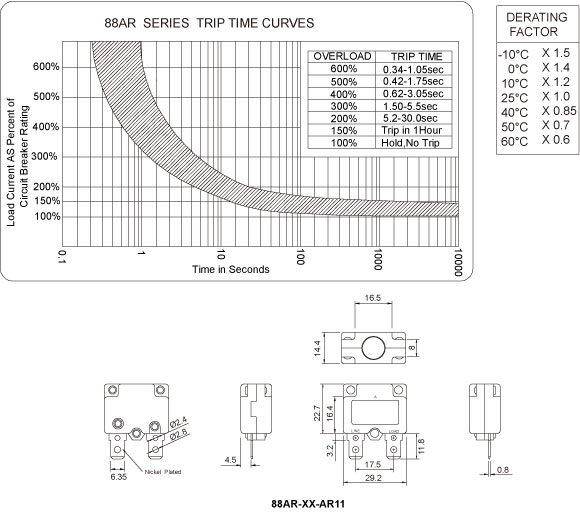

Specification

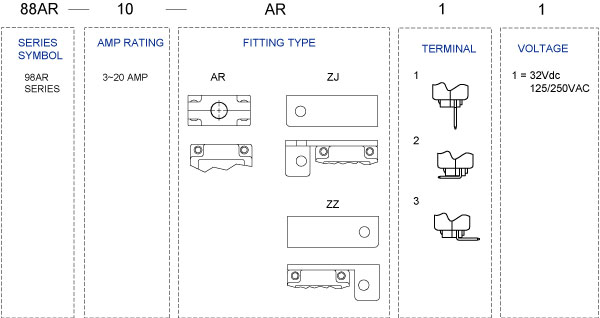

How to order

Item
