CW1D, IEC60320 C14 Inlet, with EMI Filter
CW1D, IEC60320 C14 Inlet, with EMI Filter
型號：CW1D Series
CW1D Series
IEC60320 C14 Inlet, with EMI Filter, 3A, 6A or 10A Rating in UL
Power entry module with EMI filter for electromagnetic protection
Approved by UL, CUL, CE & CQC
Standard C14 socket
Quick connect terminals
Mounted by screws
加入詢問
IEC60320 C14 Inlet, with EMI Filter, 3A, 6A or 10A Rating in UL
Power entry module with EMI filter for electromagnetic protection
Approved by UL, CUL, CE & CQC
Standard C14 socket
Quick connect terminals
Mounted by screws
Feature
- Rated Voltage: 115V/250VAC
- Frequency: 50/60Hz
- Rated Current: 3A/6A/10A
- Operating Temp: -25~+85℃
- Dielectric strength: 1450VDC (line to line): 2250VDC(line to ground)/1 min.
- Max. Leakage Current line to ground:
- 0.25mA 115VAC 60Hz
- 0.45mA 250VAC 50Hz

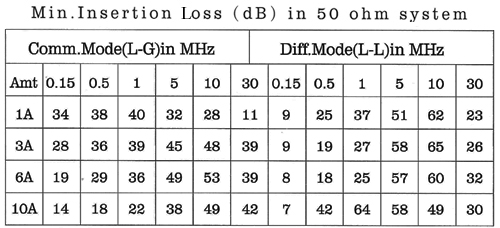

Specification

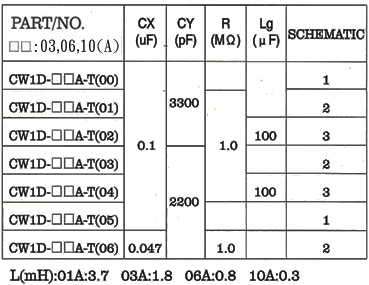

How to order
Item
Standard case drawing

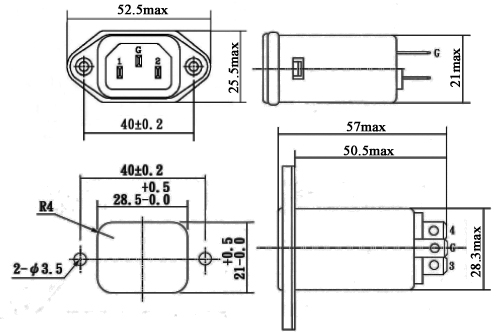

Big case drawing
