JR-101 Multi-function Socket
JR-101 Multi-function Socket
型號：JR-101 Series
JR-101
MULTI-FUCTION SOCKET, UP TO 10A 250VAC Power inlet with fuse holder or switch
加入詢問
MULTI-FUCTION SOCKET, UP TO 10A 250VAC Power inlet with fuse holder or switch
Feature
- Rating: 10A 250VAC (UL)
- Withstand voltge: AC 2000V 1Min
- Insulation Resistance: More than 100M ohms at DC 500V
- Operating Temperature: -25 ~ +85 degress C
- Material:
- Housing: Nylon#66 UL 94-V0 or V2
- Terminal: Psp1-1/2H
- Holder spec: for 5*20mm fuse

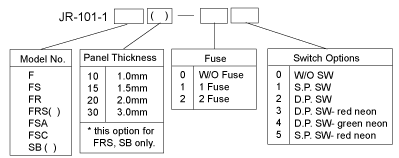

Specification
Item
|
JR-101-1F |
 |
|
JR-101-1FS |
 |
|

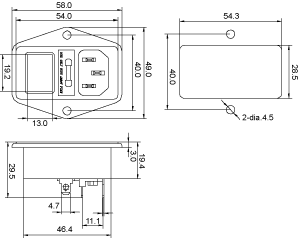

JR-101-1FR-03 |
 |
|

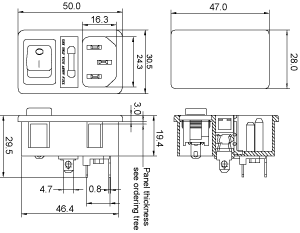

JR-101-1FRS(10)-04 |
 |
|

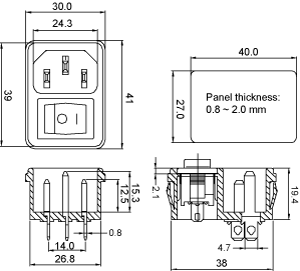

JR-101-1FSA-01 |
 |
|

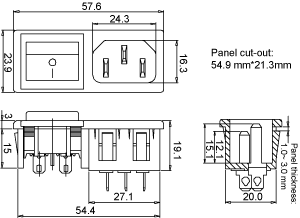

JR-101-1SB(10)-02 |
 |
|

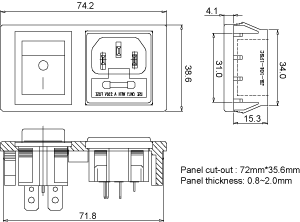

JR-101-1FSC-02 |
 |
