型號：CSK-E15R-H1
CSK-E15R-H1
UL498 approved Receptacles, speedy connected by side pushing-in wire, or by tabs in the back side.

UL498 approved Receptacles, with supporting flexible flanges for quick snap-in installment.
Quick wiring by using 4.8 tabs to insert into the slots of the back side, or by directly pushing in the 14AWG wires to the slots at the sides of the unit.
加入詢問
Feature
  • Rating: 15A 125VAC (UL/CUL)
  • Housing: Nylon 66, UL-94V0
  • Contacts:Nickle-plated brass
  • Applicable Temperature: -40℃~125℃
  • Green lead is for ground line, black for L line white for N line.
Specification

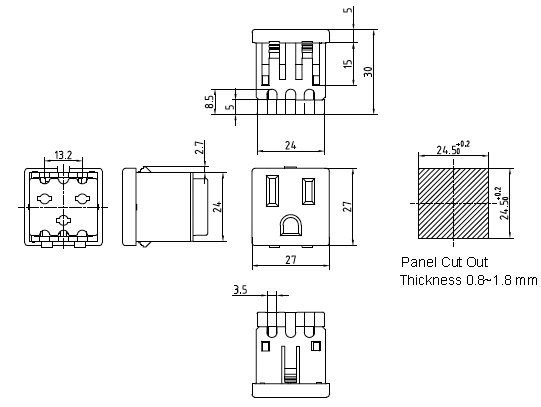

Drawing:

Item

Two Methods of Quick Connection:

  • Using quick connect 4.8 tabs to push in to the back slots, the tabs should be connected with 14AWG solid or stranded wires.
  • Directly pushing in the 14AWG wires to the slots at the sides of the unit, with the wire's insulation broken by the inside terminal edges to establish connections.
