MR-2 Indicator
MR-2 Indicator
型號：MR-2 Series
MR-2 Indicator
Square Indicator for Standard Mounting Hole 13x19mm, LED or Neon Illuminated for DC or 125/250VAC
Indicator lights that can be built in with red, green or amber color.
Standard neon lamp for AC 125/250V
LED available for DC or AC 125/250V
Quick connect .187 terminals
加入詢問
Square Indicator for Standard Mounting Hole 13x19mm, LED or Neon Illuminated for DC or 125/250VAC
Indicator lights that can be built in with red, green or amber color.
Standard neon lamp for AC 125/250V
LED available for DC or AC 125/250V
Quick connect .187 terminals
Feature
- Lamp: LED or neon lamp
- Neon lamp: DIA-4.8X10.0mm
- Insulation resistance : 100M ohm (min,)
- Dielectric strength : 1,500VAC for 1 minute
- Base : Nylon 66, UL rated 94V-2 min
- Actuator : PC, UL rated 94V-2 min
- Fixed terminals: Tin plated Copper alloy

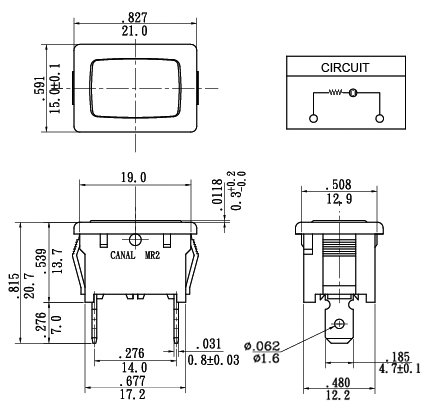

Specification

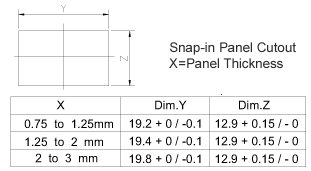

Mounting Hole
.gif)
Item
|
MR-2-110-F2R-BO-3NN (amber light) MR-2-110-F2R-BR-3NN (red light) MR-2-110-F2R-BG-3NN (green light) |
 |
