AD22, Ø22.0mm
AD22, Ø22.0mm
型號：AD22 Series
AD22 SERIES INDICATORS
Dia. 22mm Stainless Metal Indicators with LED Illumination, Concave, Flat, High & Tilted Round Heads
Stainless metal indicators dia. 22mm
LED lighted with voltage specified for DC or AC
Various color selection
Solder terminals or screw-stud for easy installing
Concave, flat, high or tilted knobs
加入詢問
Dia. 22mm Stainless Metal Indicators with LED Illumination, Concave, Flat, High & Tilted Round Heads
Stainless metal indicators dia. 22mm
LED lighted with voltage specified for DC or AC
Various color selection
Solder terminals or screw-stud for easy installing
Concave, flat, high or tilted knobs
Feature
- Lamp Type: LED (AC & DC)
- LED Rated Current: 15mA
- Insulating Resistance: ≥1000MΩ
- Dielectric Strength: 1000VAC
- Operating Temperature: -20°C ~ +55°C
- Lamp Life: 40,000 hours
- Panel Thickness: 1-10mm
- Protection Level: IP65
- Nut Torgue: 5-14Nm
- Top Len Material: PC
- M22 Bushing, Screw mounting
- Good looking shape with concave, flat, high & tilted round heads
Specification

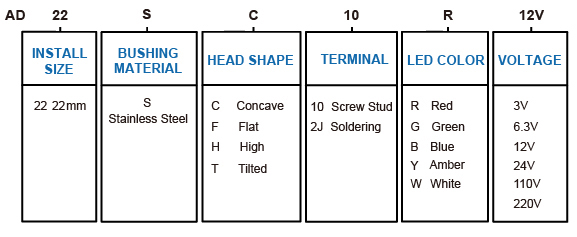

How to order
Item
|

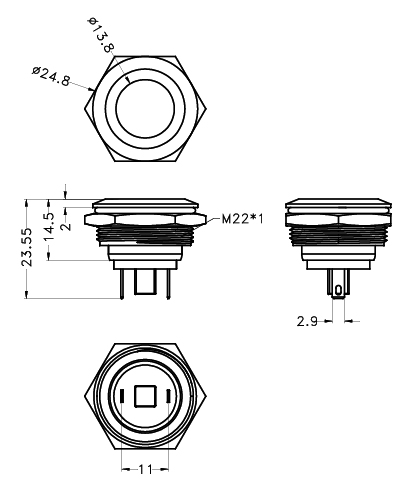

AD22ST-2JR |
 |
|

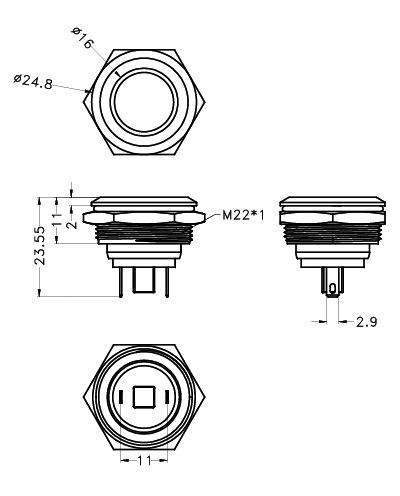

AD22SC-2JY |
 |
|

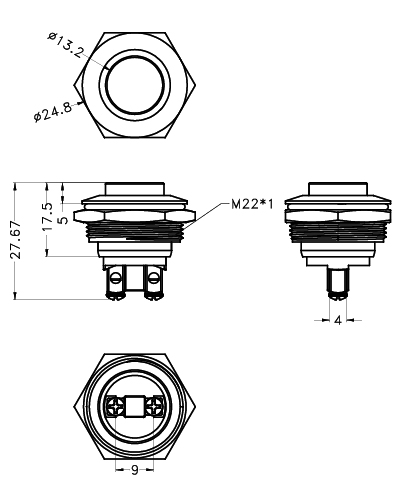

AD22SH-10G |
 |
|

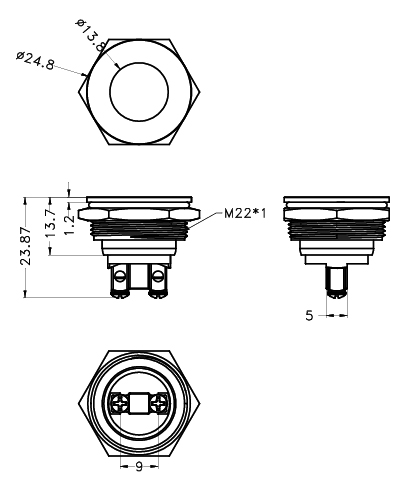

AD22SF-10B |
 |
