AD16 Ø16.0mm
AD16 Ø16.0mm
型號：AD16 Series
AD16 SERIES INDICATORS
Dia. 16mm Stainless Metal Indicators with LED Illumination, Concave or Flat Round Heads
Stainless metal indicators dia. 16mm
LED lighted with voltage specified for DC or AC
Fastened by tightening the nut to the panel
Various color selection
Solder terminals or screw-stud for easy installing
Concave or flat knobs
加入詢問
Dia. 16mm Stainless Metal Indicators with LED Illumination, Concave or Flat Round Heads
Stainless metal indicators dia. 16mm
LED lighted with voltage specified for DC or AC
Fastened by tightening the nut to the panel
Various color selection
Solder terminals or screw-stud for easy installing
Concave or flat knobs
Feature
- Lamp Type: LED (AC & DC)
- LED Rated Current: 15mA
- Insulating Resistance: ≥1000MΩ
- Dielectric Strength: 1000VAC
- Operating Temperature: -20°C ~ +55°C
- Lamp Life: 40,000 hours
- Panel Thickness: 1-10mm
- Protection Level: IP65
- Nut Torgue: 5-14Nm
- Top Len Material: PC
- M16 Bushing, Screw mounting
- Good looking shape with concave or flat round heads

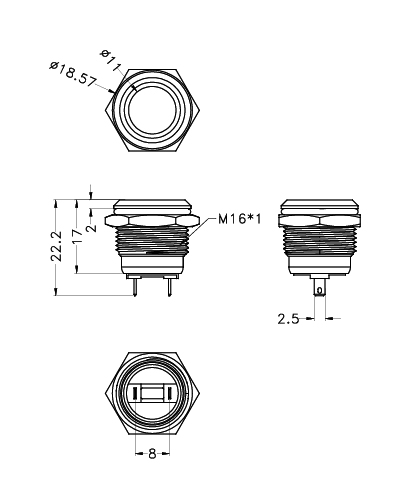

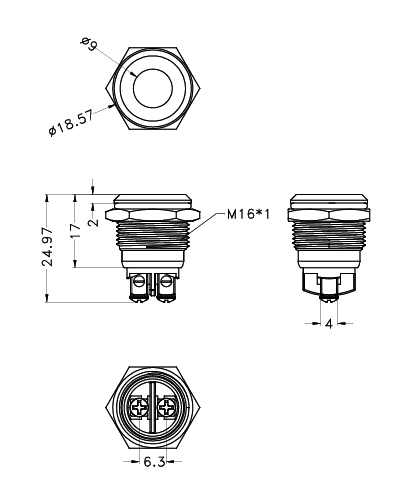

Specification

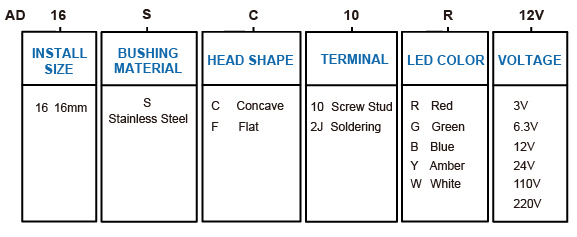

How to order
Item
|
AD16SC-2JR |
 |
|
AD16SF-10G |
 |
