AD12 Ø12.0mm
AD12 Ø12.0mm
型號：AD12 Series
AD12 SERIES INDICATORS
Dia. 12mm Small Round Metal Indicators with LED Illumination, Concave or Flat Heads
Small round metal indicators dia. 12mm
LED lighted with voltage specified for DC or AC
Fastened by tightening the nut to the panel
Various color selection
Solder terminals or screw-stud for easy installing
Concave or flat knobs
加入詢問
Dia. 12mm Small Round Metal Indicators with LED Illumination, Concave or Flat Heads
Small round metal indicators dia. 12mm
LED lighted with voltage specified for DC or AC
Fastened by tightening the nut to the panel
Various color selection
Solder terminals or screw-stud for easy installing
Concave or flat knobs
Feature
- Lamp Type: LED (AC & DC)
- LED Rated Current: 15mA
- Insulating Resistance: ≥1000MΩ
- Dielectric Strength: 1000VAC
- Operating Temperature: -20°C ~ +55°C
- Lamp Life: 40,000 hours
- Panel Thickness: 1-10mm
- Protection Level: IP65
- Nut Torgue: 5-14Nm
- Top Len Material: PC
- M12 Bushing, Screw mounting
- Good looking shape with concave or flat round heads
Specification

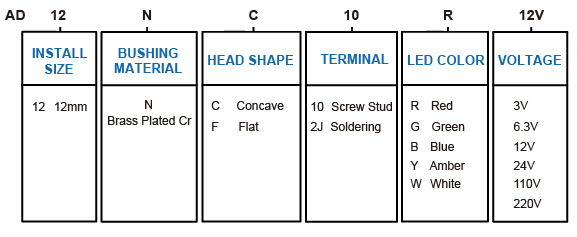

How to order
Item
|

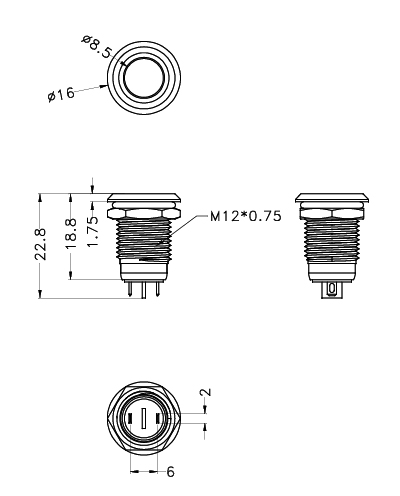

AD12NC-2JB |
 |
|

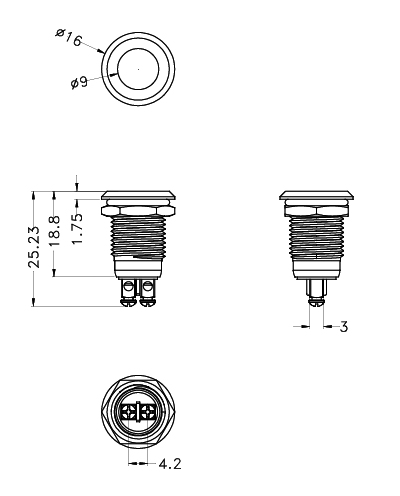

AD12NF-10Y |
 |
