AD08 Ø8.0mm
AD08 Ø8.0mm
型號：AD08 Series
AD08 SERIES INDICATORS
Dia. 8mm Mini Round Metal Indicators with LED Illumination, Concave, Flat, High & Tilted Heads
Small round metal indicators dia. 08mm
LED lighted with voltage specified for DC or AC
Fastened by tightening the nut to the panel
Various color selection
Solder terminals or screw-stud for easy installing
Concave flat, high & tilted round knobs
加入詢問
Dia. 8mm Mini Round Metal Indicators with LED Illumination, Concave, Flat, High & Tilted Heads
Small round metal indicators dia. 08mm
LED lighted with voltage specified for DC or AC
Fastened by tightening the nut to the panel
Various color selection
Solder terminals or screw-stud for easy installing
Concave flat, high & tilted round knobs
Feature
- Lamp Type: LED (AC & DC)
- LED Rated Current: 15mA
- Insulating Resistance: ≥1000MΩ
- Dielectric Strength: 1000VAC
- Operating Temperature: -20°C ~ +55°C
- Lamp Life: 40,000 hours
- Panel Thickness: 1-10mm
- Protection Level: IP65,
- Nut Torgue: 5-14Nm
- Top Len Material: PC
- M08 Bushing, Screw mounting
- Good looking shape with concave, flat, high & tilted round heads
Specification

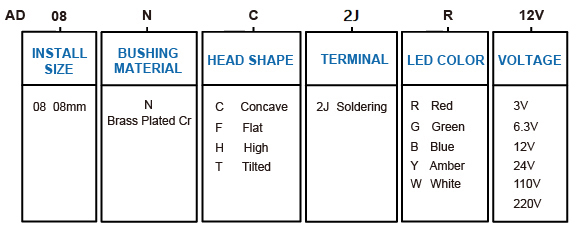

How to order
Item
|

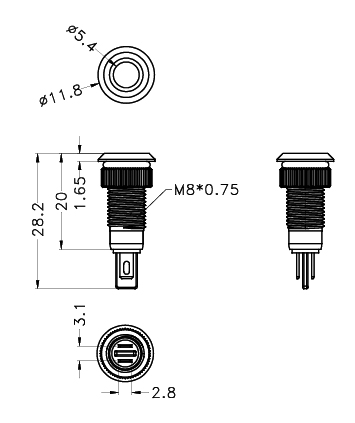

AD08NC-2JG |
 |
|

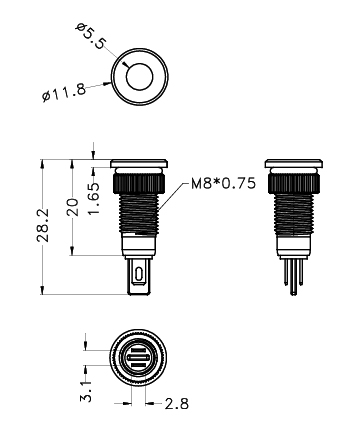

AD08NF-2JR |
 |
|

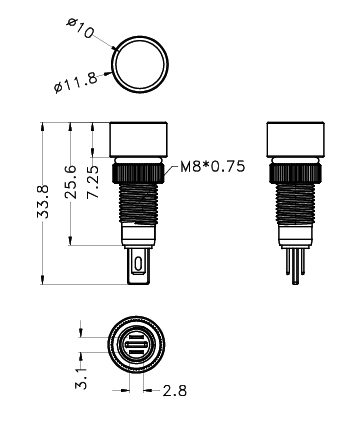

AD08NH-2JY |
 |
|

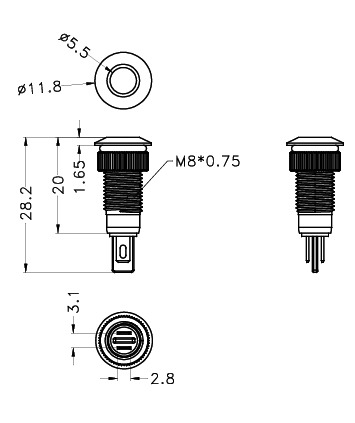

AD08NT-2JB |
 |
