FR218 Fuse Switch
FR218 Fuse Switch
型號：FR218 Series
FUSWITCH FR218-SERIES
Canal's New Fuseswitch is a custom designed control solution.
It has a high power switch plus a twin-fuse holder for good circuit protection.
Fuses are exchangeable, and the switch can be either illuminated or non-illuminated.
加入詢問
Canal's New Fuseswitch is a custom designed control solution.
It has a high power switch plus a twin-fuse holder for good circuit protection.
Fuses are exchangeable, and the switch can be either illuminated or non-illuminated.
Feature
- 10(2) 250V~ 1E4(CE)
- Initial contact resistance : 20m ohm max.
- Insulation resistance : 100M ohm min, at 500VDC
- Dielectric strength : 1,000 VAC for 1 minute
- Base : Nylon 66, UL rated : 94V-2 min
- Actuator : Nylon 66 /PC, UL rated 94V-2 min
- Contacts : Silver copper alloy
- Terminals : Silver copper alloy
- Lamp : Neon for AC
- Fuse: Optional, 10A 250V, ψ5.2x20

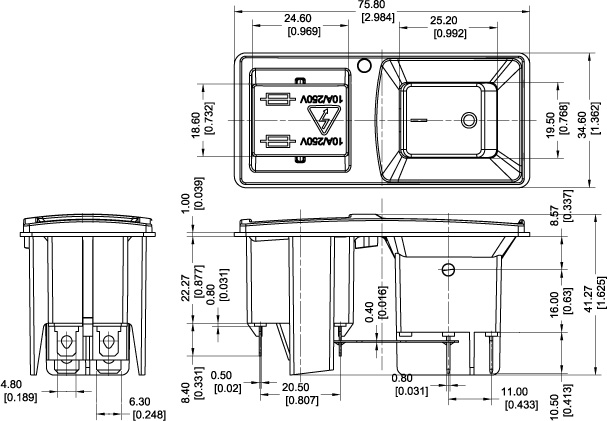

Specification
Item
