JZ-DC Series DC Power Socket with Fuse Holder, up to 20A, 12~48VDC
JZ-DC Series DC Power Socket with Fuse Holder, up to 20A, 12~48VDC
モデル：JZ-DC Series
2-in-1 socket inlet with fuse holder
Inlet up to 20A 12~48VDC
Snap-in Mounting or panel built with holes for screws fastening
Quick-connect terminal with .250 or .187 type availabe
加入詢問
Inlet up to 20A 12~48VDC
Snap-in Mounting or panel built with holes for screws fastening
Quick-connect terminal with .250 or .187 type availabe
Feature
- Rating: 20A 12-48VDC
- Fuse holder spec.: Max. 15A
- Insulation resistance: 100M Ohms min, DC 500V
- Dielectric strength: 2,000VAC for 1 minute
- Fuse holder type: Standard medium size blade fuse
- Quick-connect terminal: .250 or .187 type
- Housing: PA66 (black), UL-94V-0
- Application: Car refrigerator, portable fridge units
Specification
|

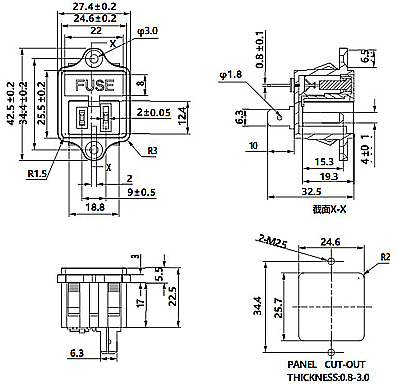

JZ-DC-01 |
 |
|

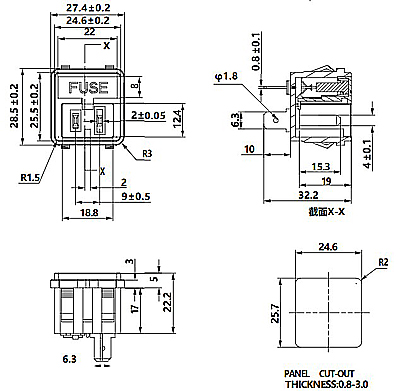

JZ-DC-02 |
 |
