TR-BAS15-2USB, TR-BAS20-2USB, Dual Port USB Charger & Protecting Double Sockets
TR-BAS15-2USB, TR-BAS20-2USB, Dual Port USB Charger & Protecting Double Sockets
モデル：TR-BAS15-2USB, TR-BAS20-2USB
TR-BAS15-2USB, TR-BAS20-2USB
Dual Port USB Charger & Protecting Double Sockets With 15A/20A Rating, USB Port Output: 5VDC 4A
UL LISTED USB DUPLEX RECEPTACLE
TR-BAS15-2USB / TR-BAS20-2USB
BAS15-2USB / BAS20-2USB
Dual Port USB Charger & Protecting Double Sockets With 15A/20A Rating
USB Port Output: 5VDC 4A
Tamper-Resistant type available
加入詢問
Dual Port USB Charger & Protecting Double Sockets With 15A/20A Rating, USB Port Output: 5VDC 4A
UL LISTED USB DUPLEX RECEPTACLE
TR-BAS15-2USB / TR-BAS20-2USB
BAS15-2USB / BAS20-2USB
Dual Port USB Charger & Protecting Double Sockets With 15A/20A Rating
USB Port Output: 5VDC 4A
Tamper-Resistant type available
Feature
- 15A/20A 125VAC ( UL )
- USB voltage and current: 5VDC 4A
- USB Compatible products：USB1.0/2.0/3.0
- Wire specifications：#14—#10AWG
- Electric strength: 1500V 50Hz Duration 1Min
- Working temperature：-20℃~60℃
- Insulation resistance：＞50MΩ（DC500V）
- Meet the standard---UL498, CSA-C22.2 NO.42
- Good heat dissipation : Design of bottom grid，good cooling
- Super high impact resistance and thermal stability
- Chemical corrosion resistance :
- Fingerprint-resistant zinc plated mounting brackets
- Grounding--One-piece grounding design
- Security doors designed to prevent people accidental exposure
- Applications: Cafes、Office、Kitchens、Bedrooms、Restaurants、
- Meeting Rooms、Airport、lounges、Labs、Hotels、Schools、Libraries
- Wall plate available packed into individual box

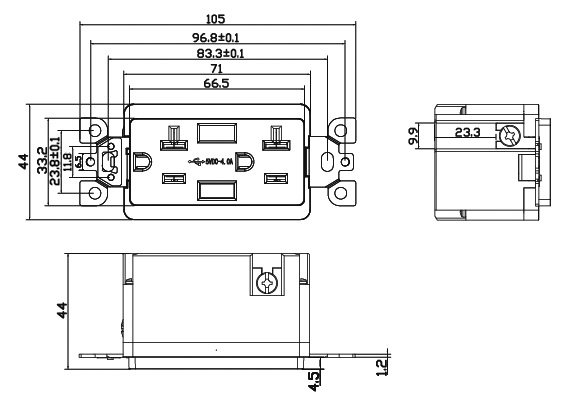

Item
| BAS15-2USB(15A) BAS20-2USB(20A) |
 |
|

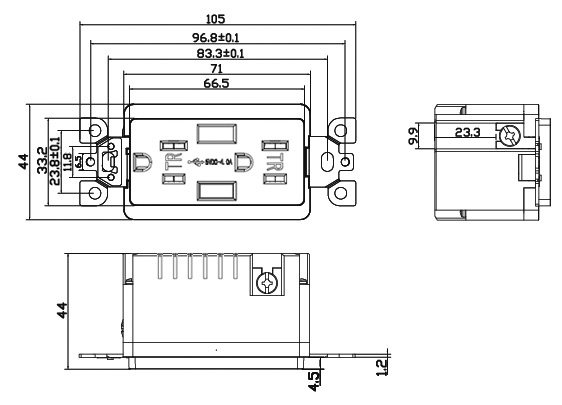

*Tamper-Resistant TR-BAS15-2USB (15A) |
-spec.jpg) |
