モデル：MR2 Series

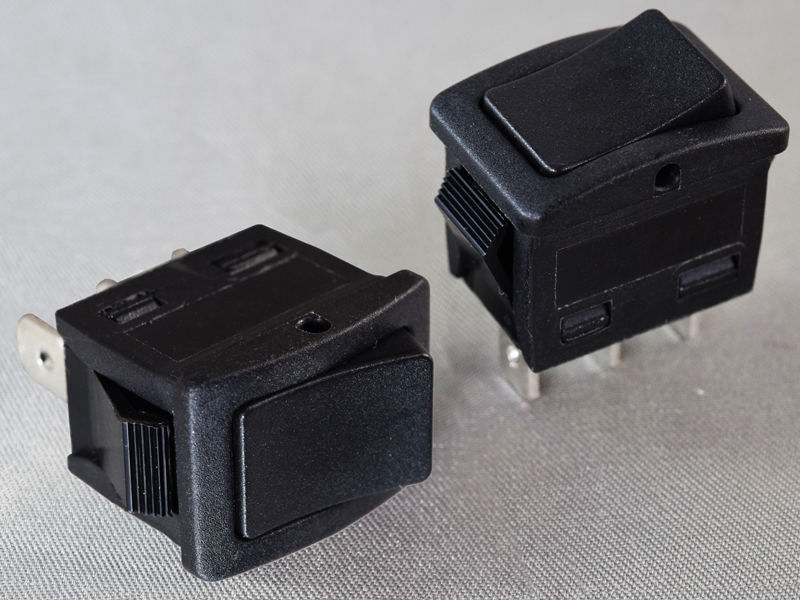

Aesthetic IP68 MR-2 Series
Patented Standard Mini Rocker Switch with IP68 Protection, Approved to UL, CUL & ENEC, up to 16(8)A
13x19mm standard mini rocker switches with IP68 protection level
Unique aesthetic designed
ON-OFF or ON-ON function
Quick connect terminals
International patented
加入詢問
Patented Standard Mini Rocker Switch with IP68 Protection, Approved to UL, CUL & ENEC, up to 16(8)A
13x19mm standard mini rocker switches with IP68 protection level
Unique aesthetic designed
ON-OFF or ON-ON function
Quick connect terminals
International patented
Feature
- 10(4)A 125/250V~T55, (cURs,ENEC15)
- 16(8)A 125/250V~T55, (cURs,ENEC15)
- 16RA 30VDC T55 , IP68 (cURs,ENEC15)
- Initial contact resistance : 20m ohm (max.)
- Insulation resistance : 100M ohm (min,) at 500VDC
- Dielectric strength : 1,500VAC for 1 minute
- Electrical life : 10,000 cycles
- Switch for Class II appliances
- Base : Nylon 66, UL rated 94V-2 min
- Actuator : Nylon 66, UL rated 94V-2 min
- Spring : Piano wire
- Contact : Silver alloy
- Terminals: Silver plated Copper
- China patent no: ZL201720184354.5

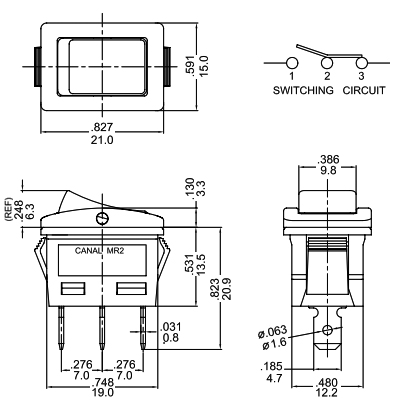

Specification

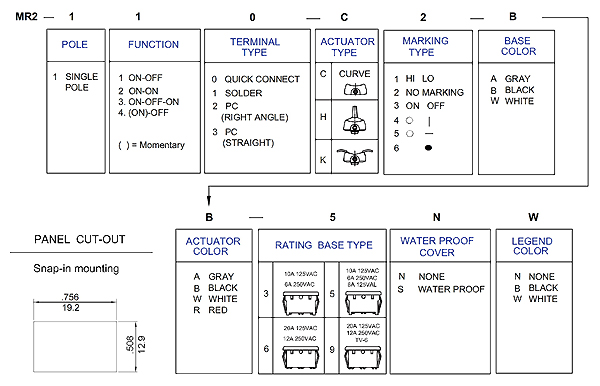

How to order
Item
|
MR2-120C2N-NBBP-29NC |
 |
