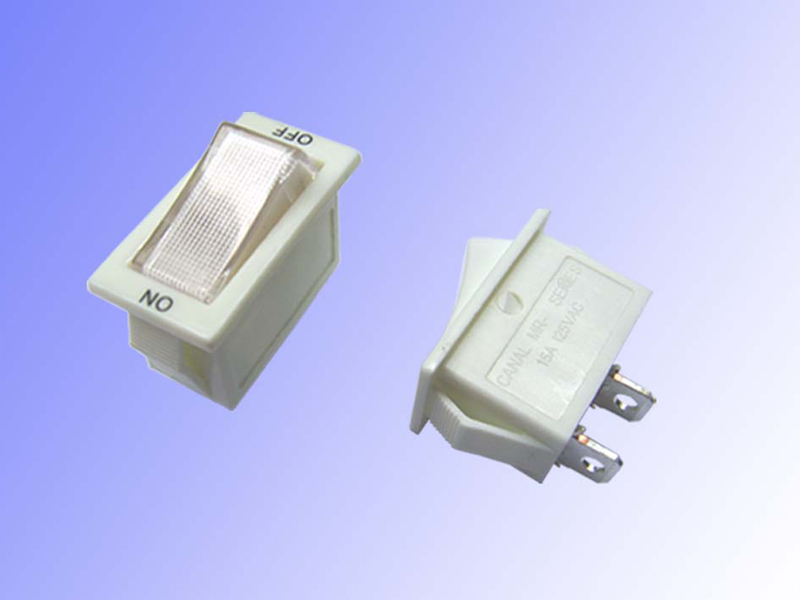

モデル：MR2 Series
Extended MR2 Series, 26x22mm
SINGLE POLE ROCKER SWITCHES UP TO 16A(8) 125/250VAC
Soldering, quick connecting, UL61058-1 approved
加入詢問
SINGLE POLE ROCKER SWITCHES UP TO 16A(8) 125/250VAC
Soldering, quick connecting, UL61058-1 approved
Feature
- 16(8)A 125/250V~T55, T125/55 (cURus , ENEC15)
- Initial contact resistance : 20m ohm (max.)
- Insulation resistance : 100M ohm (min,) at 500VDC
- Dielectric strength : 1,000VAC for 1 minute
- Electrical life : 10,000 cycles
- High inrush capability up to TV6 optional upon request
- Base : Nylon 66
- Actuator : PC or Nylon 66
- Leaf spring : Copper alloy
- Contact : Silver alloy
- Terminals: Silver plated Copper
- Spring: piano wire
- Lamp: 100~125VAC
Specification
Panel Cut-Out
Item
|

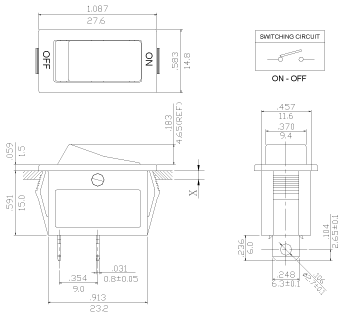

MR2-111C7B-NWWB-57NN SPST, non-illuminated, all white |
 |
|

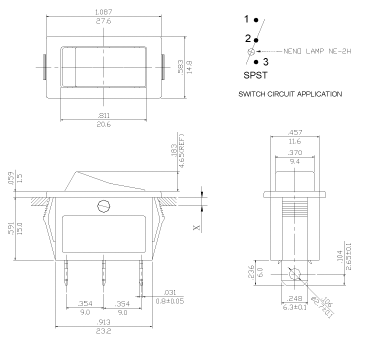

MR2-111-C7B-LWWB-57NN SPST, illuminated for 125V~ |
 |
