モデル：MA Series
MA

Pitch 2.54



Sub miniature toggle, rocker switches up to 3A 120VAC
加入詢問
Feature

  • 3A 120VAC, 1.5A 250VAC (UL)
  • 3A 28VDC (UL)
  • Initial contact resistance : 20m ohm (max.)
  • Insulation resistance : 1000M ohm (min)
  • Dielectric strength : 1,000VAC for 1 minute
  • Life cycle : 30,000 cycles
  • Temperature range : -30℃ to + 130℃
  • Base : Diallyl phthalate (DAP).
  • Actuator : Toggle, brass chrome plated
  • Gasket: nickel plated steel
  • Nuts: brass, nickel plated
  • Bushing : Brass, nickel plated
  • Housing : Stainless steel
  • Terminals : silver plated brass, gold plated optional
  • contact : Silver plated brass
  • gold plated optional
Specification

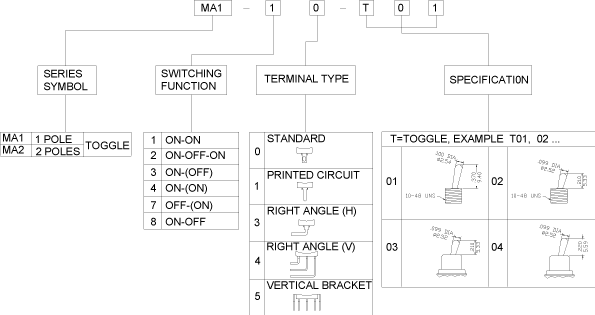

How to order

Item

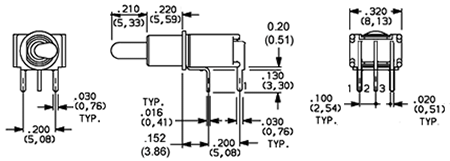

MA113-T03

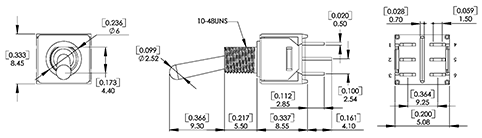

MA220-T01
