モデル：SIP Series
SIP
Dip Switches, Single in Line, up to 10 Poles, Common Terminal Circuit, Straight or Right-angled Pins
2.54 pitch dip switches
Single in line with terminals connecting to the common terminal by switching
Tube packaging
2, 4, 6, 8 or 10 poles
加入詢問
Dip Switches, Single in Line, up to 10 Poles, Common Terminal Circuit, Straight or Right-angled Pins
2.54 pitch dip switches
Single in line with terminals connecting to the common terminal by switching
Tube packaging
2, 4, 6, 8 or 10 poles
Feature
- Switching rating : 10mA, 5VDC
- Non-Switching: 100mA, 50VDC
- Contact resistance at current 100mA : 100mΩ max. at initial. 200mΩ max. after life test
- Dielectric strength : 300VAC/1minute.
- Circuit : SPST
- Electrical life : 500 operation cycles per switch 5VDC, 10mA
- Mechanical life: 500 operations
- Operation force: 800 gf. max.
- Operation Temp.: -30 to + 80 ℃
- Storage Temp.: -30 to + 80 ℃
- Base: UL94V-0 PBT or Nylon High-Temp Thermoplastic, color black.
- Cover: UL94V-0 Nylon High-temp Thermoplastic. color black
- Actuator: UL94V-0 Nylon High-temp Thermoplastic. color white
- Contact: Alloy Cooper with gold plated
- Terminal: Brass C2680-H with Tin plated
Specification

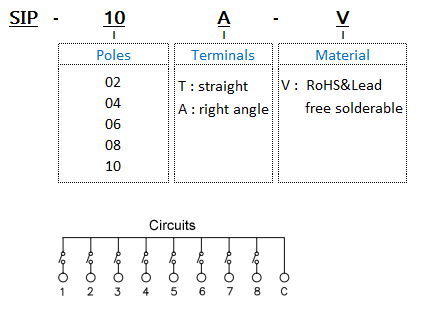

How to order
Item

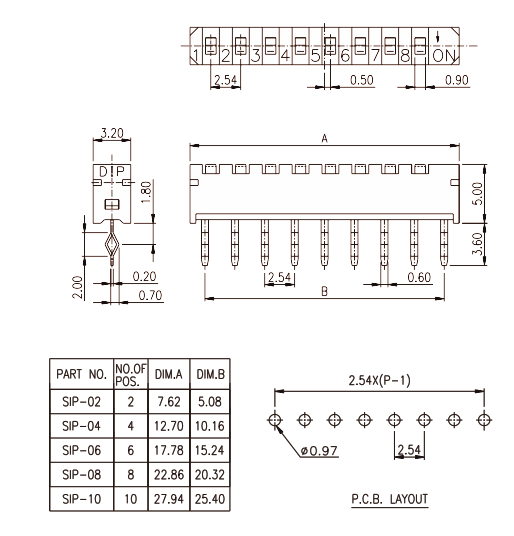

SIP-*T

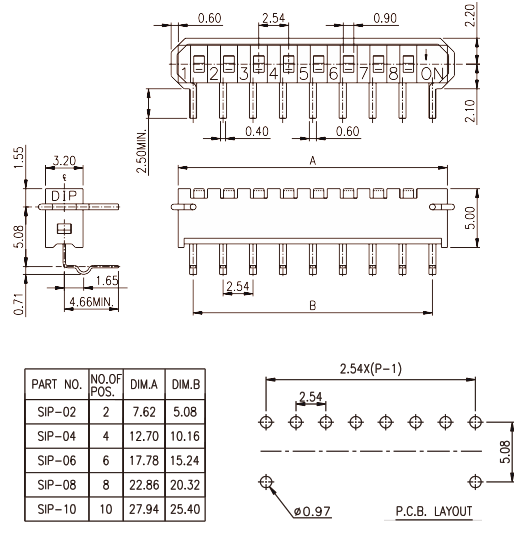

SIP-*A
