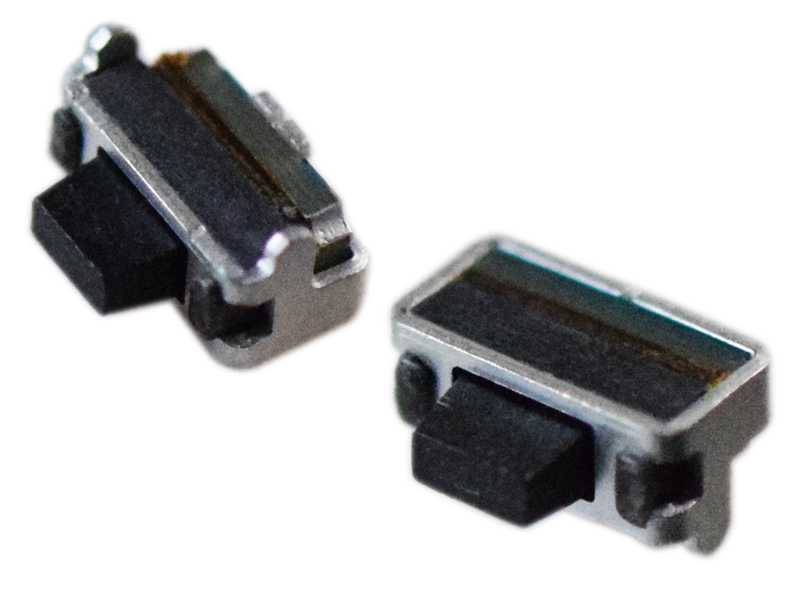

TCD-C2KQR, 2.3x4.5mm PCB Sealed Side Push Tact Switch
TCD-C2KQR, 2.3x4.5mm PCB Sealed Side Push Tact Switch
モデル：TCD-C2KQR
TCD-C2KQR
PCB Sealed Side Push Tact Switch, Compact-sized, Dimensions: 2.3x4.5mm
Side Push Tact Switch, Dimensions: 2.3x4.5mm
Compact-sized, Side actuated
Sealed with dust proof
PCB-base structure
Applications: Smart phone, Digital camera, Medica, Portable electronic device
加入詢問
PCB Sealed Side Push Tact Switch, Compact-sized, Dimensions: 2.3x4.5mm
Side Push Tact Switch, Dimensions: 2.3x4.5mm
Compact-sized, Side actuated
Sealed with dust proof
PCB-base structure
Applications: Smart phone, Digital camera, Medica, Portable electronic device
Feature
- 50mA, 12VDC
- Initial contact resistance: 100mΩ max.
- Insulation resistance: 100MΩ min. (at 100VDC)
- Dielectric strength: 250VAC for 1 minute
- Operating life: 100,000 cycles
- Operating temperature range: -40 ~ 85ºC
- Operating force: 160 ± 50g
- Function: push ON
- Tape & reel package

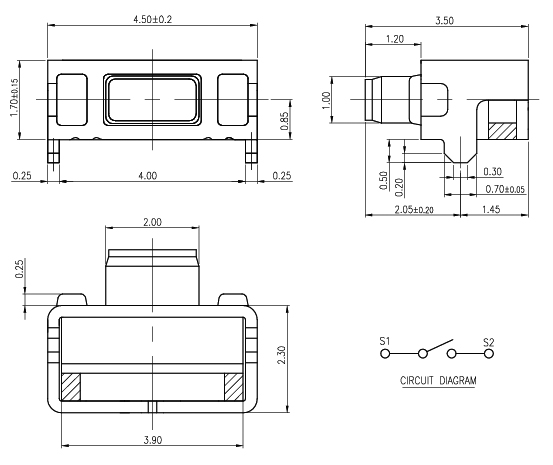

Specification
|

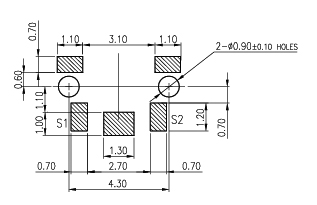

PCB Layout
|
Packaging
|
Item
