モデル：1198 Series
1198
SMT Sub-Miniature Tact Switches, 4.5x4.5mm, 50mA 12VDC

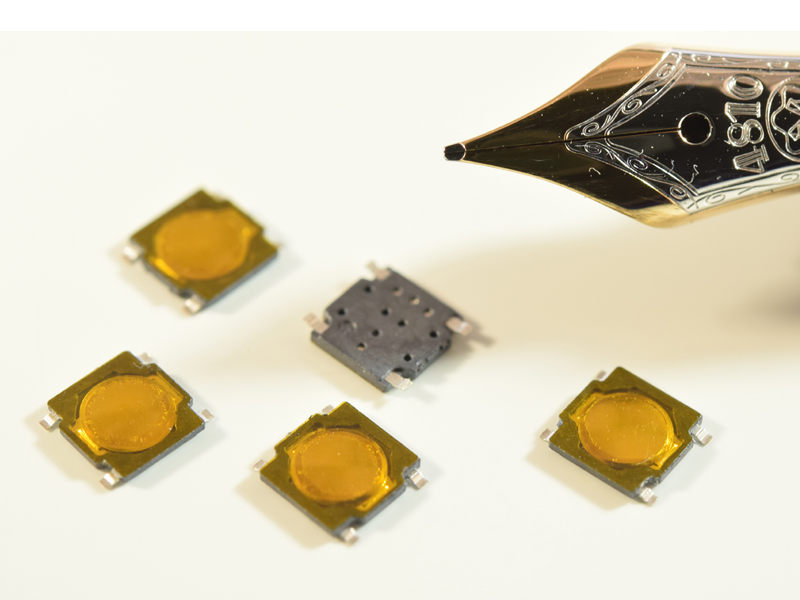

Ultra small tact switches, 4.5x4.5mm in size.
Mounted to PCB by SMT.
100K life cycles.
加入詢問
SMT Sub-Miniature Tact Switches, 4.5x4.5mm, 50mA 12VDC
Ultra small tact switches, 4.5x4.5mm in size.
Mounted to PCB by SMT.
100K life cycles.
Feature
- Rating: 50mA 12VDC
- Action: SPST, push on ,
- Travel: 0.2+/-0.1mm
- Bounce: 10m sec.max.
- Initial contact resistance : 100m ohms (max.)
- Insulation resistance : 100M ohms (min,) at 100VDC
- Dielectric strength : 100VAC for 1 minute
- Electrical life : 100,000 cycles
- Operating force: 160gf+/-30; 250gf+/-50
- Operating Temperature: -20 ℃ ~ + 70 ℃ (45%~85%RH)

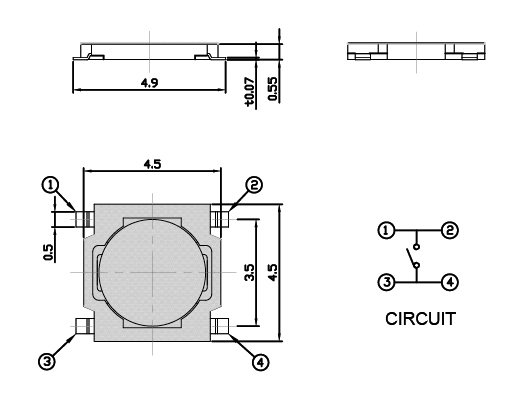

Specification
PCB Layout
Item
|
1198-160g (Operation force: 160g)
1198-250g |
 |
