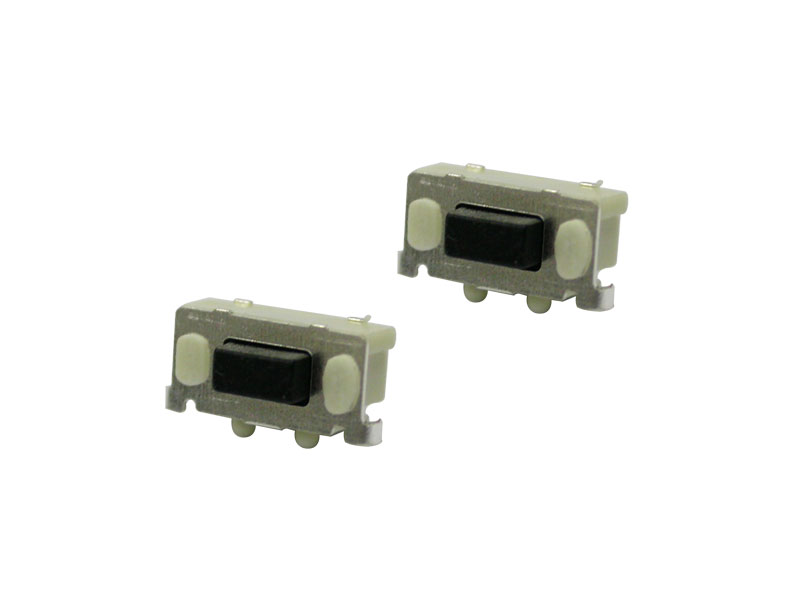

1188, 7X3.5X3.5mm, Surface Mount side-push type tact switch; up to 50mA 12VDC
1188, 7X3.5X3.5mm, Surface Mount side-push type tact switch; up to 50mA 12VDC
Feature
- Rating: 50mA 12VDC
- Action: SPST, push on
- Initial contact resistance : 100m ohm (max.)
- Insulation resistance : 100M ohm (min,) at 100VDC
- Dielectric strength : 250VAC for 1 minute
- Life : 160g/50,000 cycles; 260g/30,000 cycles
- Operating force: 160gf+/-50; 260gf+/-60
- Operating Temperation: -20 ℃ ~ + 70 ℃ (45%~85%RH)

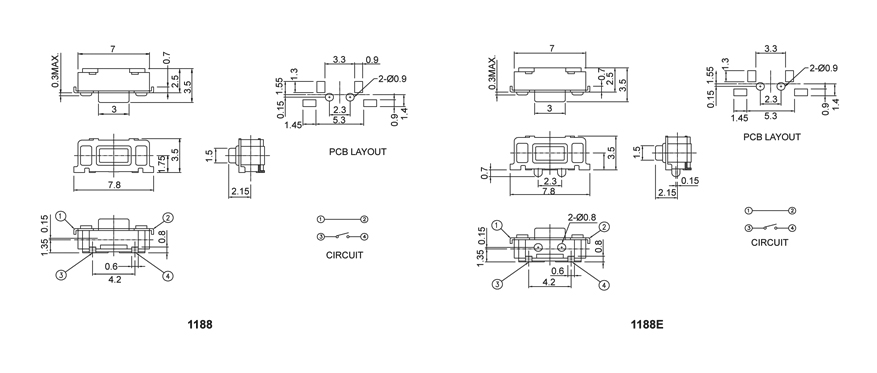

Specification

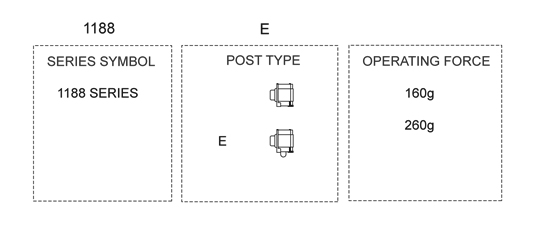

How to order
Item
