1181, 6x3.6x2.5mm, Surface mount type tact switch, up to 50mA 12VDC
1181, 6x3.6x2.5mm, Surface mount type tact switch, up to 50mA 12VDC
モデル：1181 Series
1181
6x3.6x2.5mm
Surface mount type tact switch, up to 50mA 12VDC
body 6.0mm X 3.6mm, 2.5mm height
加入詢問
6x3.6x2.5mm
Surface mount type tact switch, up to 50mA 12VDC
body 6.0mm X 3.6mm, 2.5mm height
Feature
- Rating: 50mA 12VDC
- Action: SPST, push on
- Initial contact resistance : 100m ohm (max.)
- Insulation resistance : 100M ohm (min,) at 100VDC
- Dielectric strength : 250VAC for 1 minute
- Electrical life : 50,000 cycles for force: 160gf+/-50 , 30,000 cycles for 260gf+/-50
- Operating Temperation: -20 ℃ ~ + 70 ℃
- Packaging: Tape & reel
BS type 2500 PCs/reel
BJ type 3000 PCs/reel

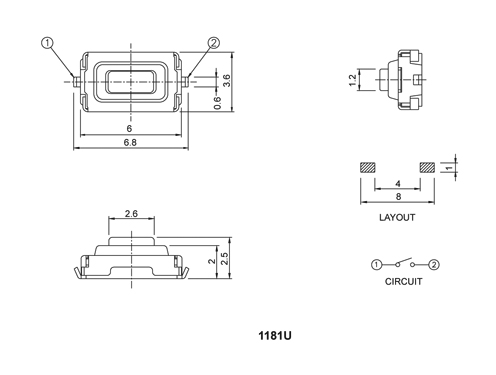

Specification

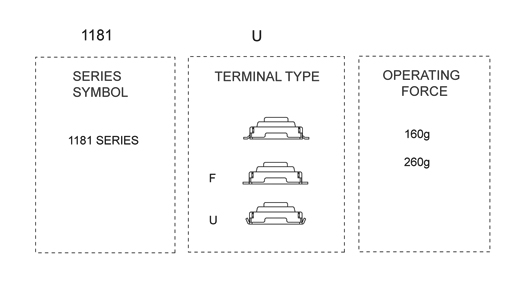

How to order
Item
