1157, 6x6x2.1mm Surface Mount Tact Switches, 50mA 12VDC
1157, 6x6x2.1mm Surface Mount Tact Switches, 50mA 12VDC
モデル：1157 Series
1157
6x6x2.1mm Surface Mount Tact Switches, 50mA 12VDC, with or without Ground Terminal
6x6x2.1mm Surface mount tact switches
50mA 12VDC
100K life cycles
Splayed or jact terminals
With or without ground pin
加入詢問
6x6x2.1mm Surface Mount Tact Switches, 50mA 12VDC, with or without Ground Terminal
6x6x2.1mm Surface mount tact switches
50mA 12VDC
100K life cycles
Splayed or jact terminals
With or without ground pin
Feature
- Rating: 50mA 12VDC
- Action: SPST, push on
- Initial contact resistance : 100m ohms (max.)
- Insulation resistance : 100M ohm (min,) at 100VDC
- bounce: 10m sec. max.
- Dielectric strength : 250VAC for 1 minute
- Electrical life : 100,000 cycles
- Surface mount type tact switch
- Outline dimension 6.2mm x 6.2mm
- With or without knob
- Applications: communications and electronic apparatus; audio, stere equipment, camcorders, head phone stereo sets; operating signal input switches, etc.
- Tape and reel package, 4000 pcs in a reel
Specification

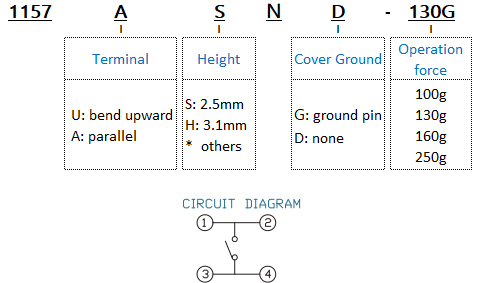

How to order
Item

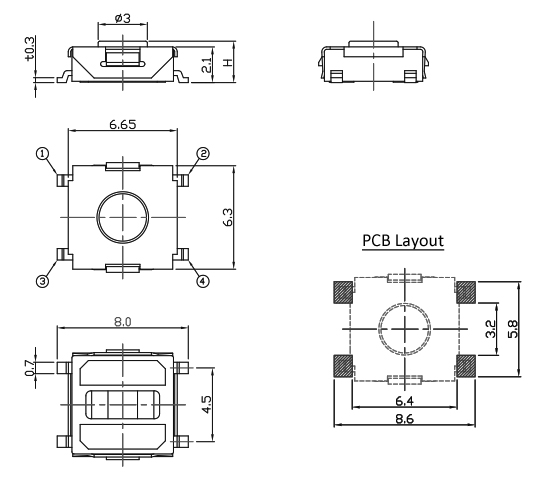

1157A*ND-***G

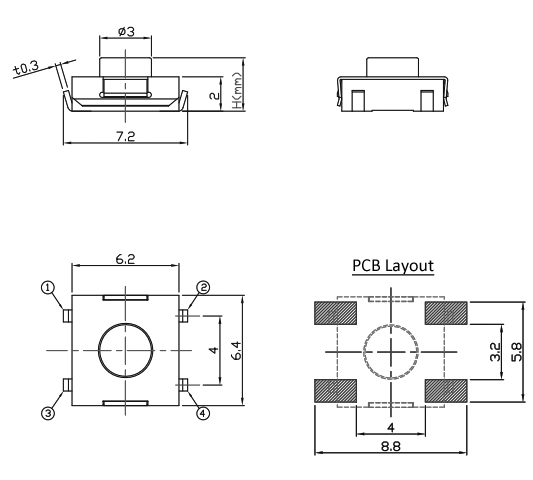

1157U*ND-***G
