MSS

Miniature Type



Miniature Type Slide switch, up to 25mA 24VDC

Circuit: SP2T, SP3T, DPDT, SP4T
加入詢問
Feature

  • Electrical Life: 10,000 cycles

  • Non-switching rating: 300mA, 4VCD

  • Switching Rating: 25mA, 24VDC

  • Contact Resistance: 100m max.

  • Insulation Resistance: 100M  min. (500VDC)

  • Dielectric Strength: 500VAC/ 1minute

  • Circuit: SP2T, SP3T, DPDT, SP4T

  • Mechanical Life: 10,000 operations cycles

  • Travel: 1.5mm

  • Operation Temperature: -20 ℃ to +70 ℃

  • Storage Temperature: -40 ℃ to +85 ℃

  • RoHS: compliant

  • T/R Packaging:
    MSS3/MSS4/MSS14: 2500/reel
    MSS6: 1400/reel
Specification

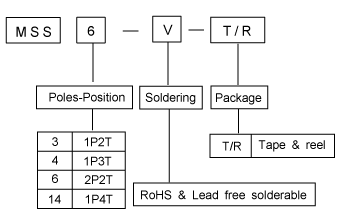

How to order

Item

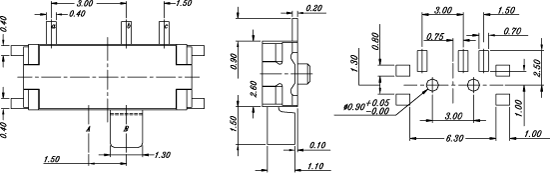

MSS3

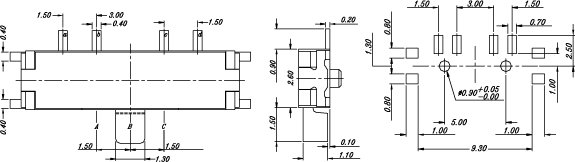

MSS4

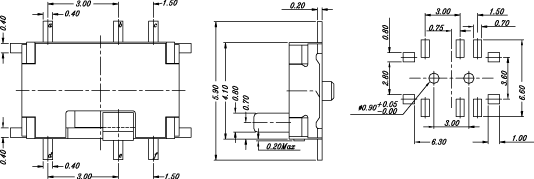

MSS6

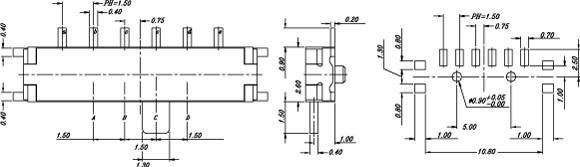

MSS14
