型號：TE Series
TE

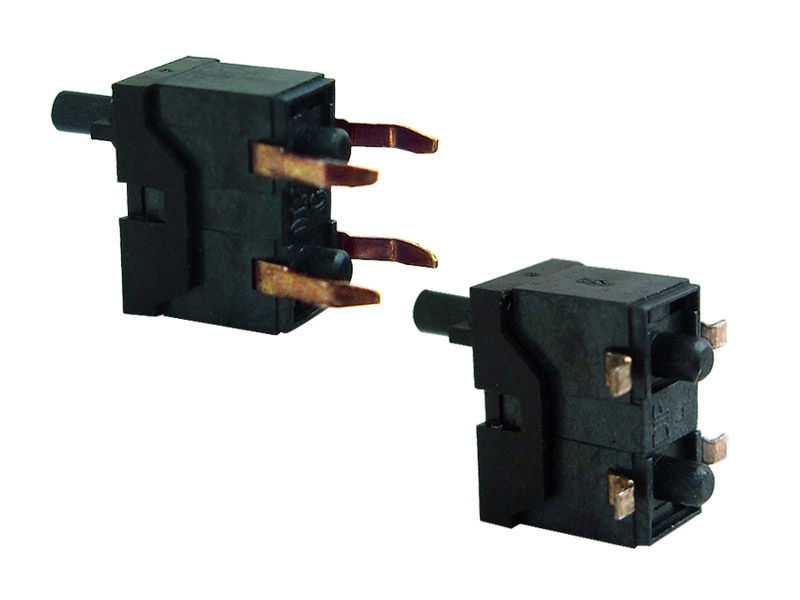

Vertical button detector switch, up to 5mA 5VDC
Through hole and SMT type terminal, long actuator available
加入詢問
Vertical button detector switch, up to 5mA 5VDC
Through hole and SMT type terminal, long actuator available
Feature
- Rating: 5mA, 5VDC
- Contact Resistance: 500MΩ max.
- Insulation Resistance: 100M min. (250VDC)
- Dielectric Strength: 250VAC/ 1minute
- Circuit: SPST
- Electrical Life: 50,000 cycles
- Stroke: 2 mm
- Operation Force: 30gf max.
- Operation Temperature: -20℃ to +70℃
- Storage Temperature: -30℃ to +80℃
- Cover & Base: UL 94V-0 LCP High-temp thermoplastic, black
- CONTACT: Stainless steel with silver cladding
- TERMINAL: Phosphor bronze with silver plated
- TE-M: 500 PCS/REEL
- TE-ML: 400PCS/REEL

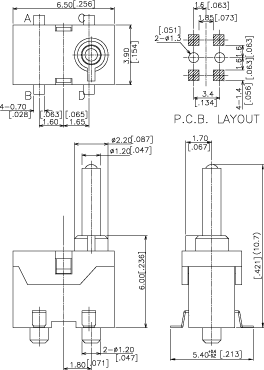

Specification

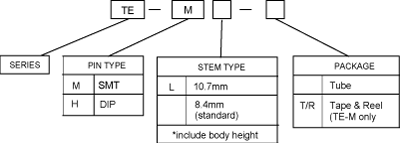

How to order
Item
| TE-H |  |
| TE-ML |  |
