AZ3, Limit Switch
AZ3, Limit Switch
Feature
- Compact construction
- Pre-wired or connector versions
- Rugged aluminum alloy dicast housing
- Wide selection of actuators
- Gang mounting capability
- Cable length variations, standard 3mm
- Side and bottom exit cable/connector
- Simple two-screw mounting
Specification
- Utilization category 5A 125V,3A 250V AC
- Contact resistance 15mΩ max
- Maximum operating speed 1mm ~ 1m/s
- Mechanical durability 1,000,000 operations (min)
- Electrical durability 200,000 operations (min)
- Adequate operating speed Mechanical:120 operationa/min,Electrical:30 operationa/min
- Inslation resistance 100mΩ min (at 500V DC)
- Ambient temperature range -10°C ~ +60°C ( Protect against frost )
- Ambient humidity 95% RH ( max ) Pollution degree 3 ( EN60947-5-1 )
- Enclosure rating IP 67
- Weight Approx 360g (cable length 3m)
Item

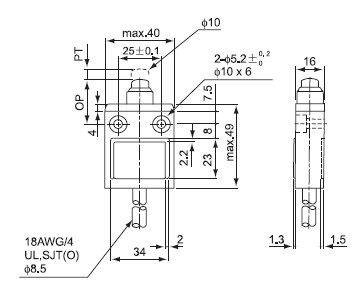

| AZ3101 |  |
