CW2A, IEC60320 C14 Inlet, with EMI Filter, Single or Twin Fuses
CW2A, IEC60320 C14 Inlet, with EMI Filter, Single or Twin Fuses
モデル：CW2A Series
CW2A Series
IEC60320 C14 Inlet, with EMI Filter, Single or Twin Fuses, 3A, 6A or 10A Rating in UL
Power entry module with EMI filter for electromagnetic protection
Approved by UL, CUL, CE & CQC
Standard C14 socket
Quick connect terminals
Mounted by screws
加入詢問
IEC60320 C14 Inlet, with EMI Filter, Single or Twin Fuses, 3A, 6A or 10A Rating in UL
Power entry module with EMI filter for electromagnetic protection
Approved by UL, CUL, CE & CQC
Standard C14 socket
Quick connect terminals
Mounted by screws
Feature
- Rated Voltage: 115V/250VAC
- Frequency: 50/60Hz
- Rated Current: 3A/6A/10A
- Operating Temp: -25~+85℃
- Dielectric strength: 1450VDC (line to line): 2250VDC(line to ground)/1 min.
- Max. Leakage Current line to ground:
- 0.25mA 115VAC 60Hz
- 0.45mA 250VAC 50Hz

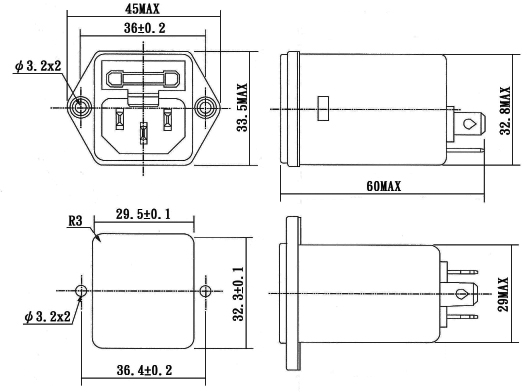

Specification

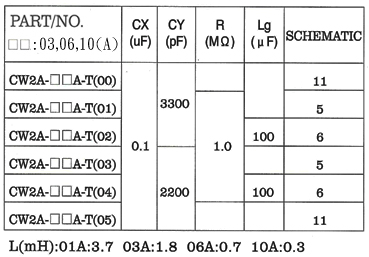

How to order
Item
