モデル：PK-16 Series
Vandal-proof push switches, M16 Bushing, Illuminated or Non-illuminated, SPDT or DPDT
Anti-Vandal Pushbutton Switches, Up to 3A 250VAC
Bushing 16mm, illuminated or non-illuminated
SPDT, DPDT function
CQC & CE safety approval
加入詢問
Anti-Vandal Pushbutton Switches, Up to 3A 250VAC
Bushing 16mm, illuminated or non-illuminated
SPDT, DPDT function
CQC & CE safety approval
Feature
- 3A 125/250V~µ5E4 (CQC, CE)
- 3A 3~48VDC µ3E4 (CQC, CE)
- Contact resistance: 50m Ω (max.) initial
- Insulation resistance: 100M Ω (min)
- Dielectric strength : 2,000VAC for 1 minute
- Mechanical life: 200,000 cycles
- Electrical life: 50,000 cycles
- IP65 protection level
- Non-illuminated, ring or spot illuminated type
- 1, 2 pole circuitry; OFF-(ON), OFF-ON, ON-(ON), ON-ON
- M16 bushing, screw mounting
- Optional case material and surface treatment
- Solder terminals or screw terminals
- Safety approval: CQC, CE
Specification

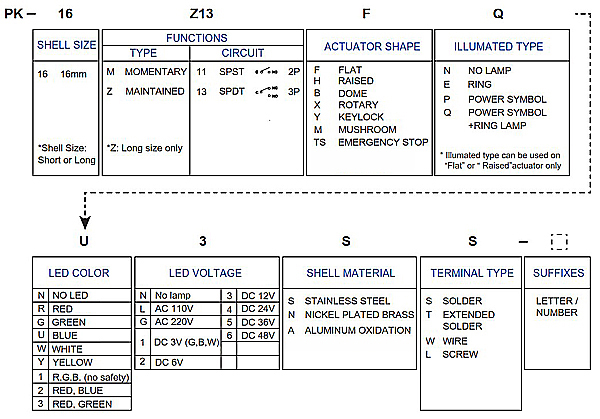

How to order
Item
|
PK-16M11HNNNSL |
 |
|
PK-16M11FQU3SS |
 |
|
PK-16M11FER1SS |
 |
|
PK-16M11HEW1NS-ANT |
 |
.jpg)
|

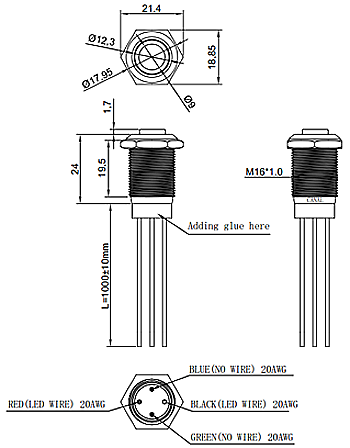

PK-16M11HEG1AS-ANTO |
 |
|
PK-16M11FNNNSS |
PK-16M11BNNNNS |
PK-16M11HNNNNS |
|
PK-16Z13HNNNNS |
PK-16M11FEU3SS |

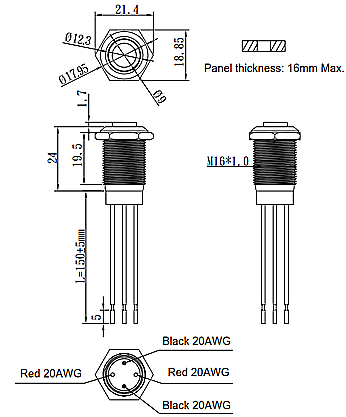

PK-16M11HEW1NS-ANT |
|
PK-16Z13FEG3SS |
PK-16Z13FEY3NS |
PK-16Z13HEU3SS |
