モデル：PBM-19 Series
PBM-19

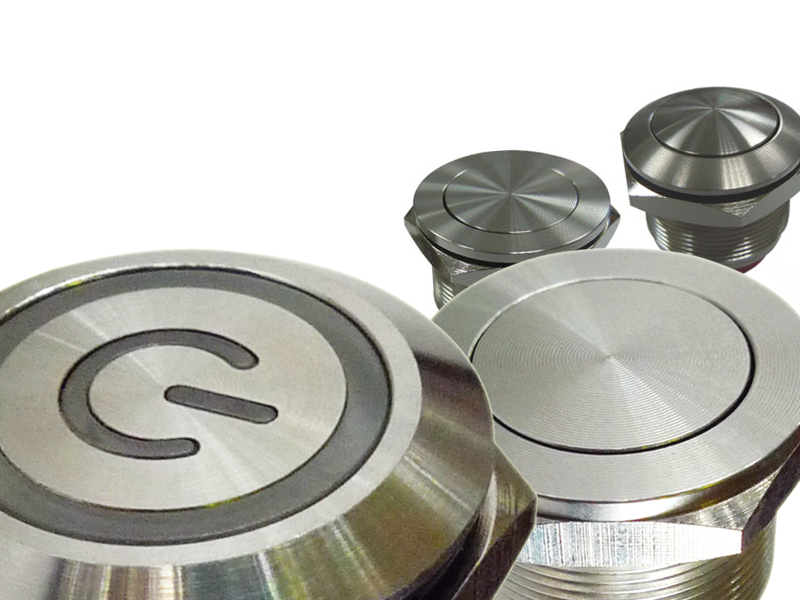

Vandal-Proof Push Switches, M19 Bushing, Illuminated or Non-Illuminated, SPDT or DPDT
Anti-Vandal Pushbutton Switches, Up to 5A 250VAC, Bushing 19mm, illuminated or non-illuminated type
加入詢問
Vandal-Proof Push Switches, M19 Bushing, Illuminated or Non-Illuminated, SPDT or DPDT
Anti-Vandal Pushbutton Switches, Up to 5A 250VAC, Bushing 19mm, illuminated or non-illuminated type
Feature
- Rating: 5A 250VAC (CE)
- Contact resistance: 50m Ω (max.) initial
- Insulation resistance: 100M Ω (min)
- Dielectric strength : 2,000VAC for 1 minute
- Mechanical life: 200,000 cycles
- Electrical life: 50,000 cycles
- IP65 protection level
- Non-illuminated, ring, spot, power symbol illuminated type
- 1, 2 pole circuitry; OFF-(ON), OFF-ON, ON-(ON) or ON-ON
- M19 bushing, screw mounting
- Optional case material and surface treatment
- Solder or screw terminals
Specification

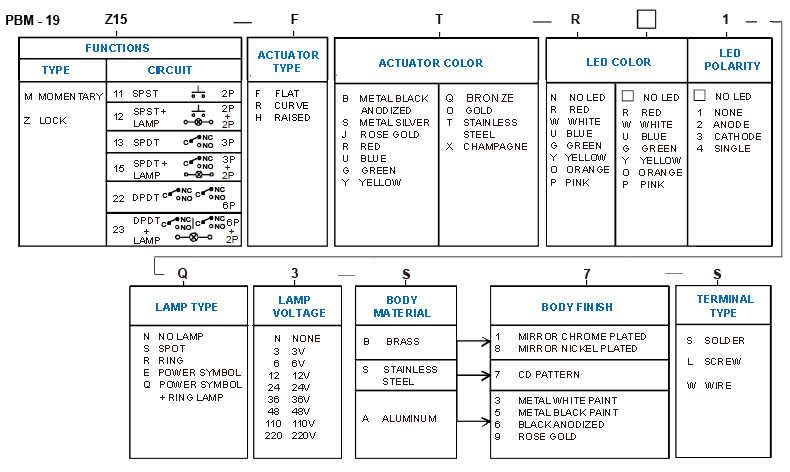

How to order
Panel Cutout
Item
|

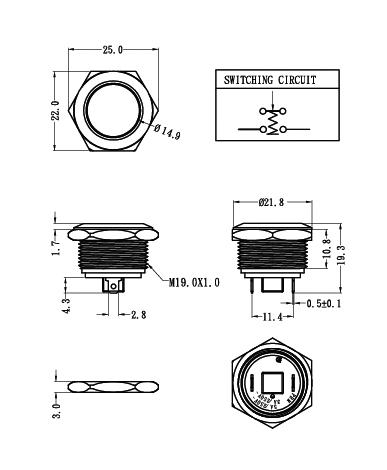

PBM-19M11-FS-N-NN-B8-S |
 |
|

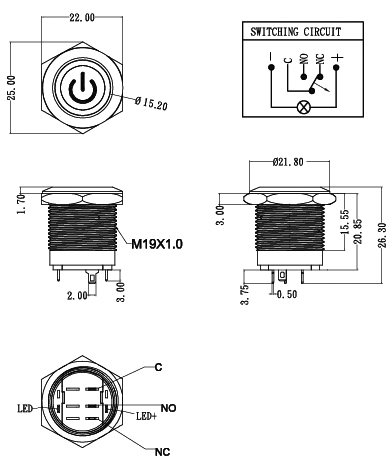

PBM-19Z15-FT-R1-Q3-S7-S |
 |
|

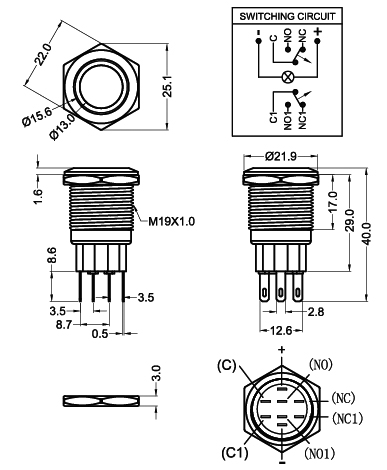

PBM-19Z23-FS-G1-R3-S7-S |
 |
|
PBM-19M11-FS-N-NN-S8L |
PBM-19M11-RS-N-NN-S8L |
PBM-19M11-HS-N-NN-S8L |
|
PBM-19Z23-FS-G1-S3-S8S |
PBM-19Z23-FS-R1-R6-S8S |
PMB-19Z13-RS-U1-R6-S8S |
