モデル：TS2
TS2

CAP 10mm



ILLUMINATED TACT SWITCHES UP TO 12VDC 50mA, LEN LIGHT EFFECT

Round or Square Housing
加入詢問
Feature
  • Rating: 12VDC, 50mA (SPST)
  • Initial contact resistance : 100m Ohm max.
  • Insulation resistance : 100M min
  • Dielectric strength : 250 VAC for 1 minute
  • Temperature range : -10 to +60 degrees in celsius
  • Operating force: 180gf +/- 30
  • Switch life: 100,000 cycles minimum
  • Cap: ABS
  • Terminals: Brass, silver or tin plated
  • Frame:Nylon66,UL rated:94V-2 min
Specification

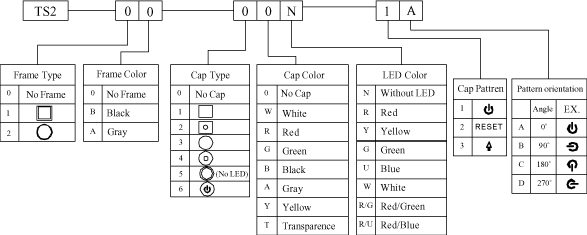

How to order

PCB Layout

Item

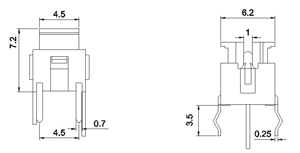

TS2-00-00R

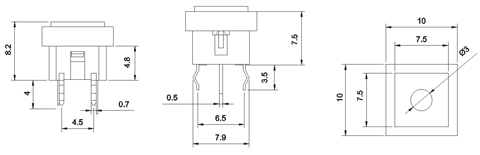

TS2-1A-2GG

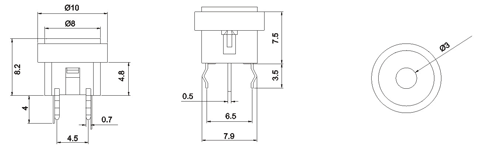

TS2-2A-4A-R
