PB06, Optional cap size
PB06, Optional cap size
/Prod2012022000001.jpg)
Feature
- Rating: 12VDC, 100mA
- Initial contact resistance: 20m Ohm max.
- Insulation resistance: 100M min
- Dielectric strength: 250VAC for 1 minute
- SPST, push on
- 12*12mm, 15*15mm, 17.4*17.4mm cap size
- 1 to 3 colors LED
- Optional LED and cap color
- PCB mounting

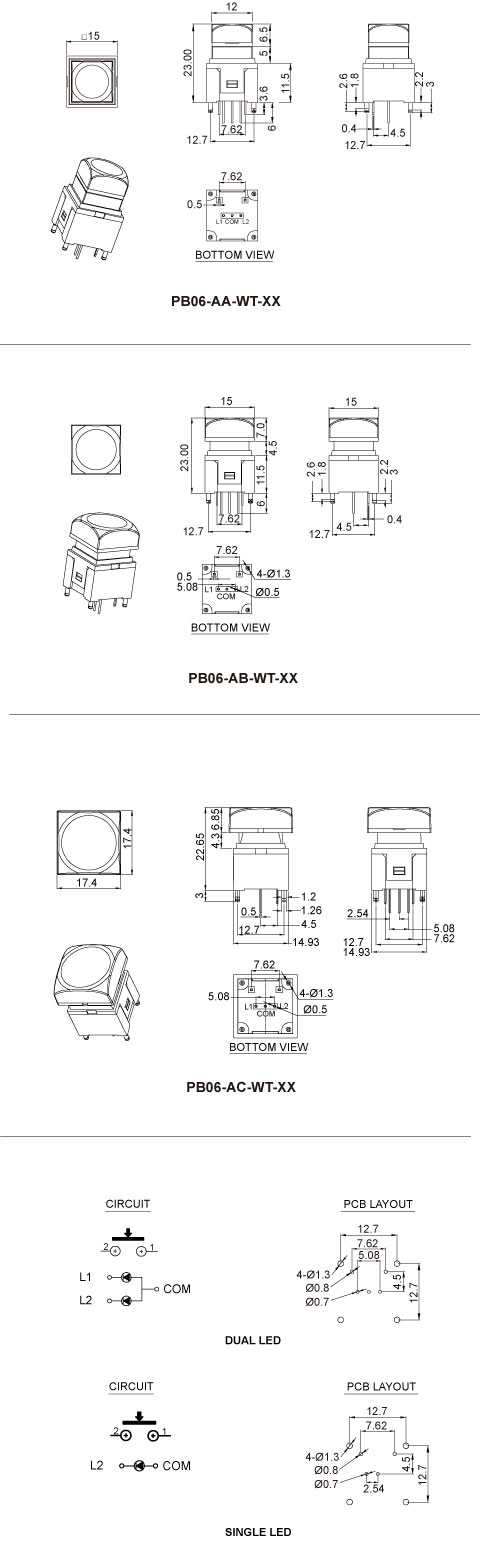

Specification

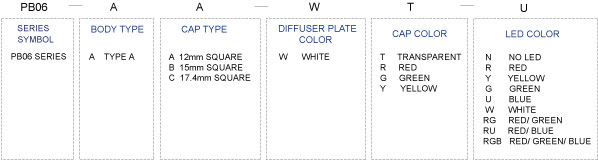

How to order
/pb06_tree.jpg)
Item
/PB06-spec(1).jpg)
