TS203 7 pins Max.
TS203 7 pins Max.
モデル：TS203 7
TS203
7 pins Max.

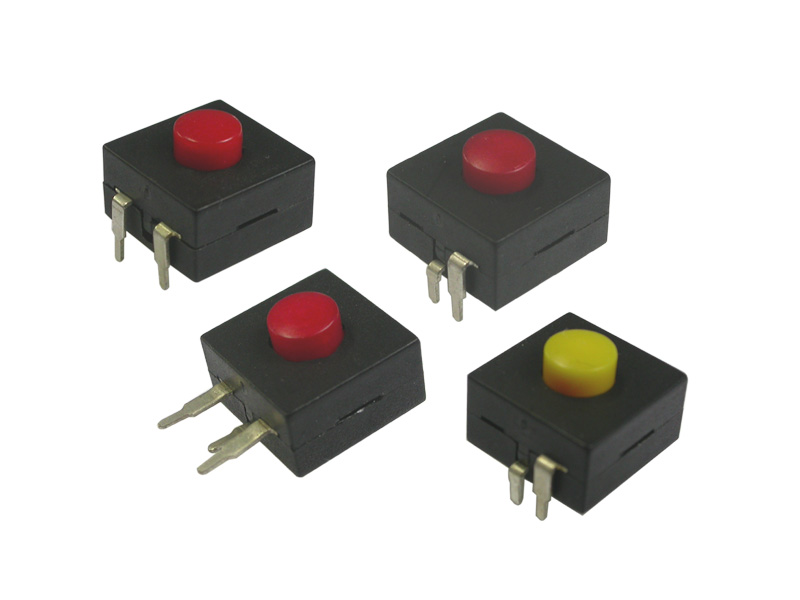

Tiny pushbutton/ Torch switch, Up to 1A, 30VDC
Optional function and button color, 2~7 pins
加入詢問
7 pins Max.
Tiny pushbutton/ Torch switch, Up to 1A, 30VDC
Optional function and button color, 2~7 pins
Feature
- Rating: 1A, 30VDC
- Contact Resistance: 100m ohms (Max)
- Insulation Resistance: 100M ohms(Min)
- Withstand Voltage: AC 1000V 1 Minute
- Operating Force: 700+/- 250gf
- Electrical Life: 20,000 cycles
Specification

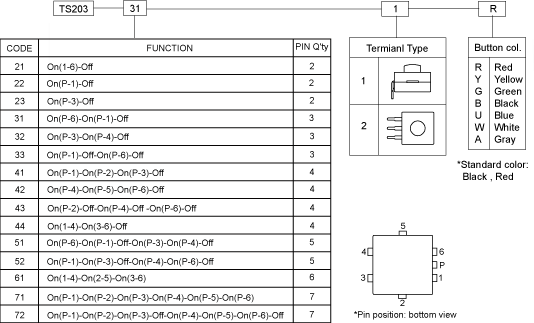

How to order
Item

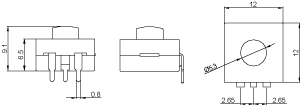

| TS203-31-1 |  |

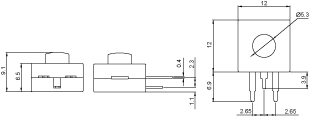

| TS203-31-2 |  |

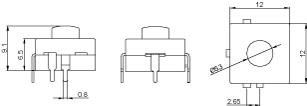

| TS203-41-1 |  |

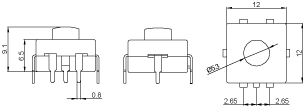

| TS203-71-1 |  |
