TS202 3 pins Max.
TS202 3 pins Max.
モデル：TS202
TS202
3 pins Max.

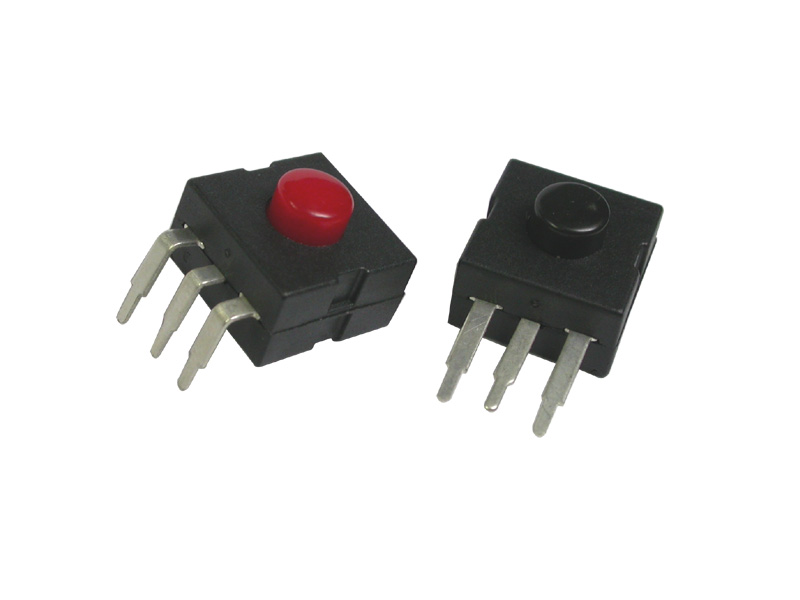

Tiny pushbutton/ Torch switch, Up to 3A, 30VDC
Optional terminal type and button color
加入詢問
3 pins Max.
Tiny pushbutton/ Torch switch, Up to 3A, 30VDC
Optional terminal type and button color
Feature
- Rating: 3A, 30VDC
- Contact Resistance: 100m ohms (Max)
- Insulation Resistance: 100M ohms(Min)
- Withstand Voltage: AC 1000V 1 Minute
- Operating Force: 700+/-150gf
- Electrical Life: 20,000 cycles
Specification

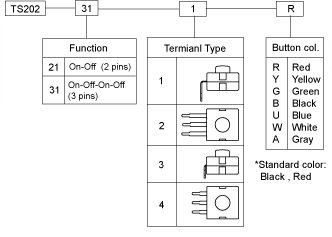

How to order
Item
| TS202-31-1 |  |
| TS202-31-2 |  |
| TS202-31-4 |  |
