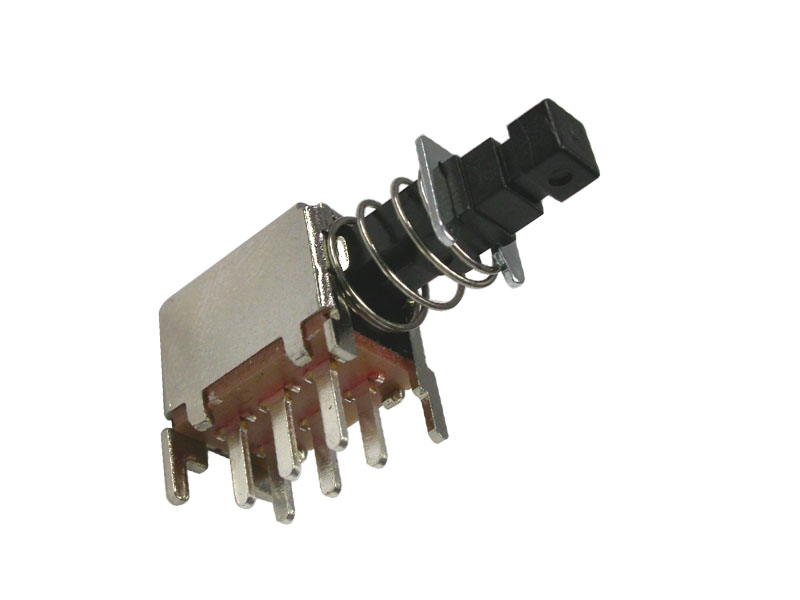

PS908L-22-2A, DC30V 2A, 2P2T

• Rating : DC30V 1A /2A, DC50V 0.3A
• Insulation Resistance: ≧100MΩ DC250V
• Withstand Voltage: AC 250V 1 minute
• Contact Resistance: < 50 mΩ
• Soldering Temperature: 260ﾟC  max.3sec
• Mechanical Life: 10,000 cycles
• Electrical Life: 10,000 cycles
• Ambient Temperature Used: -10ﾟC to 60ﾟC
• Ambient Humidity Used : < 85 % RH
• Operating force: 300+/-100gf

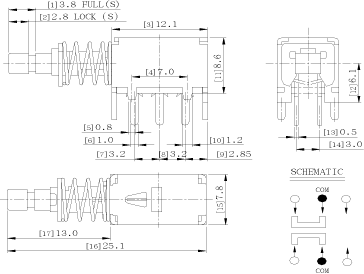

P.C.B. mounting hole
