モデル：PS9 Series
PS9
Push switches, wire-connected, solder or screw terminals, 6A 125/250VAC UL&CUL recognized
Wire-connected, solder or screw terminals,
6A 125/250VAC UL&CUL recognized
Momentary Function, OFF-(ON) or ON-(OFF)
Metal Bushing & Nut attached
加入詢問
Push switches, wire-connected, solder or screw terminals, 6A 125/250VAC UL&CUL recognized
Wire-connected, solder or screw terminals,
6A 125/250VAC UL&CUL recognized
Momentary Function, OFF-(ON) or ON-(OFF)
Metal Bushing & Nut attached
Feature
- 6A 125/250V~μT55 ( UL, CUL )
- Initial contact resistance: 50m Ohms max.
- Insulation resistance: 100M Ohms min, at 500VDC
- Dielectric strength: 1,000VAC for 1 minute
- Electrical life: 10,000 cycles
- Push switches with optional wire connected
- Momentary Function, ON-(OFF) or OFF-(ON)
- Metal Bushing & Nut attached for installation
Specification

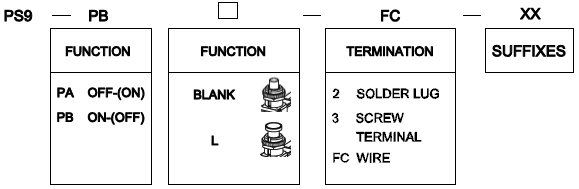

How to order
.jpg)
Mounting Hole
Item
|

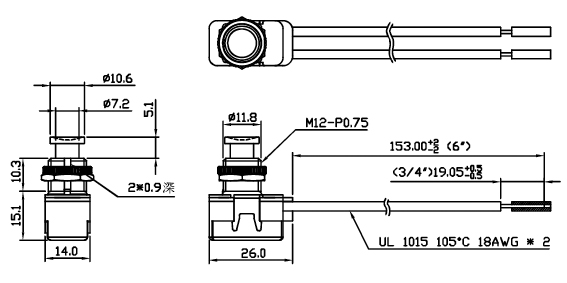

PS9-PB-L-FC |
 |
|

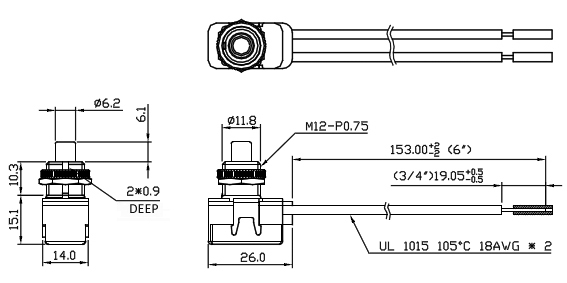

PS9-PA-FC PS9-PB-FC |
 |
|

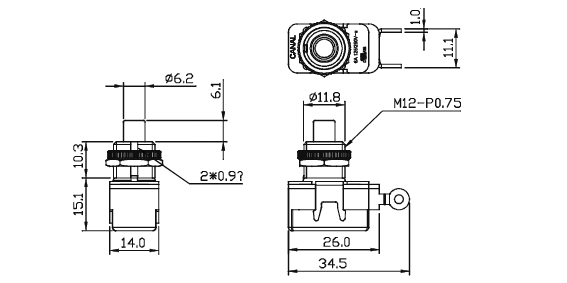

PS9-PA-2 PS9-PB-2 |
 |
|

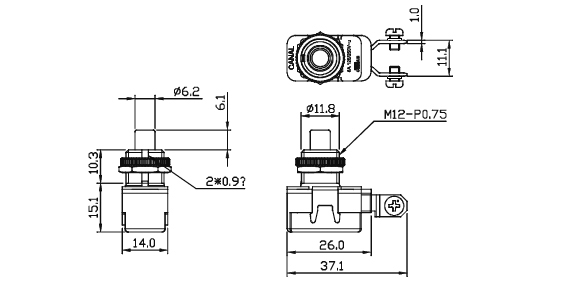

PS9-PA-3 PS9-PB-3 |
 |
