PS5, DPST Push Switch

PS5, DPST Push Switch

モデル：PS5 Series
PS5

DPST Push Switch, up to 16(8)A, 128A Inrush Current in UL, CUL&ENEC, Momentary or Locking Type



LOW PROFILE MAIN POWER SWITCHES 16A 250VAC

DPST,SPST, cleat or snap in 13X19mm, illuminated

Up to 16(8)A, 128A Inrush Current

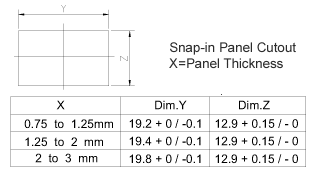

Can be mounted by snapin, cleating

Illuminated or none illuminated
加入詢問
Feature



  • 16A 125/250VAC (UL,CUL)
  • 16(4)A 250VAC~ T125/55 (VDE, ENEC)
  • 16(8)A 250V~T125/55 (VDE, ENEC) optional
  • TV-6 / 125V~T55, 25E3 (cURus) optional
  • 8[128]A 250V~T55 1E4 (cURus, ENEC15) optional
  • Initial contact resistance : 20m max.
  • Insulation resistance : 100M min, at 500VDC
  • Dielectric strength : 1,000 VAC for 1 minute
  • Base : Nylon 66/PBT, UL rated 94V-2 min
  • Actuator : Nylon 66/PC, UL rated 94V-2 min
  • Spring : Piano wire
  • Contacts : Silver alloy
  • Terminal : Silver plated copper
  • IP65 protection level available for rubber-boot mounted actuator ( passing MIRDC's TAF laboratory test )

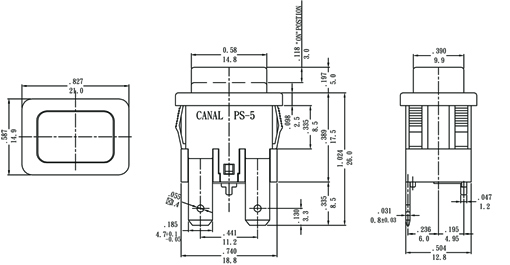

Specification

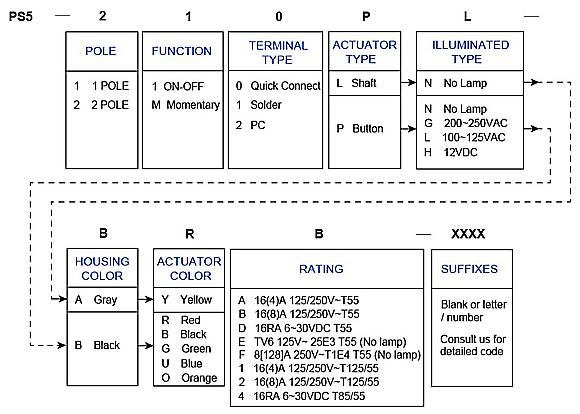

How to order









 Quoted from Wekipedia:

~Inrush current, input surge current or switch-on surge is the maximum, instantaneous input current drawn by an electrical device when first turned on. For example, incandescent light bulbs have high inrush currents until their filaments warm up and their resistance increases. Alternating current electric motors and transformers may draw several times...... ~

Choosing a switch that can have a good capacity for your device is thus very important for your device's safety. Our PS5 series can offer an option up to TV6 or equivalent to 92A inrush, or 8A'L' up to 128A inrush that can be the appropriate switch to ensure your device's life and stability.

Item

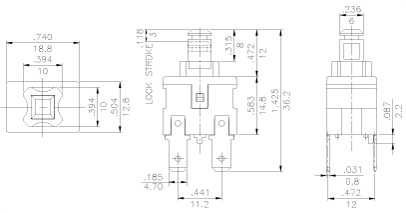

PS5-212LN-AYA-3LBC

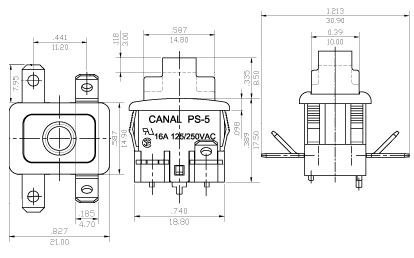

PS5-210PG-BOB-0PAC

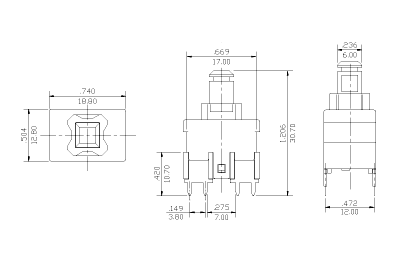

PS5-210PL-BBA-AHAC

Built-in Neon for knob-customization

PS5-210PL-BRB-0PAW

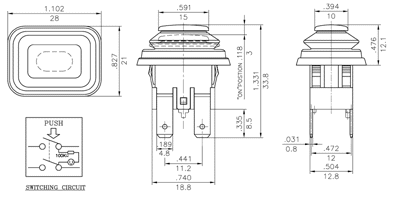

IP65 protection level

PS5-210LN-AYB-0LAC

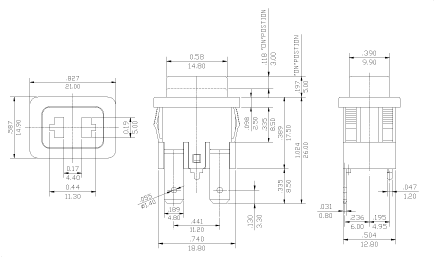

PS-5-110PN-BB1-0FAC

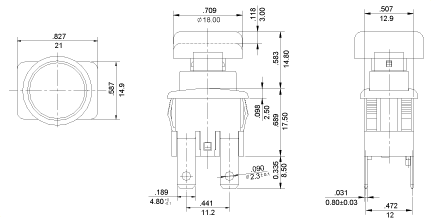

PS5-211PG-BRB-8RBC

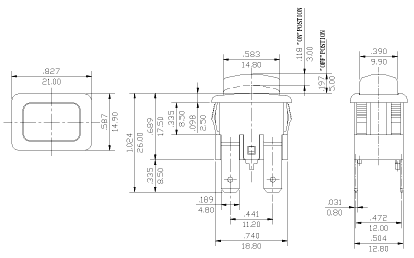

PS5-110PN-BBA-0KAC
